The ADC12DS080 is a high-performance, low-power 12-bit AD converter released by Analog Devices, using a differential architecture with a maximum sampling rate of 80MSPS.

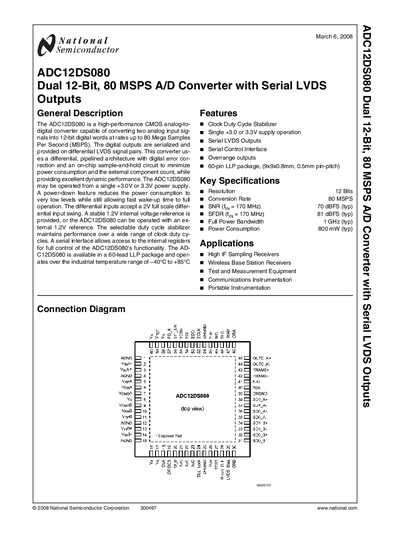

The ADC12DS080 is a high‑performance CMOS analog‑to‑digital converter that converts two analog input signals into 12‑bit digital words at up to 80 MSPS. It uses a differential, pipelined architecture with digital error correction and an on‑chip sample‑and‑hold circuit, providing low power consumption and a reduced external component count.
The device operates from a single +3.0 V or 3.3 V supply, includes a 1.2 V internal reference (or can use an external reference), and provides serial LVDS outputs on differential pairs for each channel. It is offered in a 60‑lead LLP package and is rated for industrial temperature ranges.
| Resolution | 12 Bits |
|---|---|
| Conversion Rate | 80 MSPS |
| Signal‑to‑Noise Ratio (170 MHz) | 70 dBFS (typ) |
| Spurious‑Free Dynamic Range (170 MHz) | 81 dBFS (typ) |
| Full Power Bandwidth | 1 GHz (typ) |
| Power Consumption | 800 mW (typ) |
It can be operated from a single +3.0 V or 3.3 V power supply.
The differential inputs accept a 2 V full‑scale differential input swing.
The device provides serial LVDS outputs on differential pairs for each of the two channels.
It is available in a 60‑lead LLP package.
