This document describes an industrial relay with model number 157-23C200 from the brand Midtex. The features of this relay include a 3C/O contact arrangement, a contact current rating of 10 amps, and a monostable coil magnetic system.

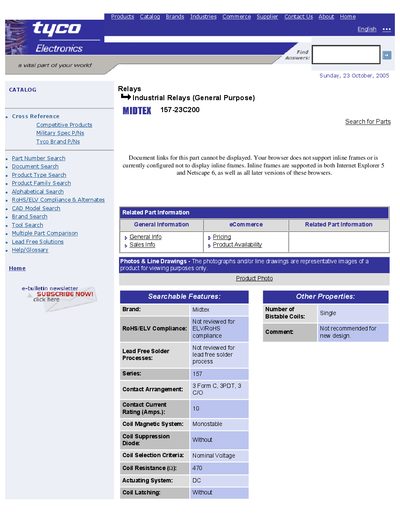

This catalog entry describes the MIDTEX 157-23C200 industrial relay, listing its series, contact arrangement, coil characteristics, and electrical ratings. Key specifications such as coil resistance, magnetic system type, and nominal power are included.
The document also notes RoHS/ELV compliance status and provides references to Tyco International Ltd. for further product information and ordering.
| Series | 157 |
|---|---|
| Contact Arrangement | 9 Renin, SOM, 8 |
| Contact Current | 40 |
| Coil Magnetic System | Monostable |
| Coil Resistance (Q) | 470 |
| Actuating System | DC |
| Coil Latching | Without |
| Contact Material | Silver Cadmium Oxide |
| RoHS/ELV Compliance | Not recommended for compliance |
The coil resistance is 470 Ω.
It is not recommended for RoHS/ELV compliance.
