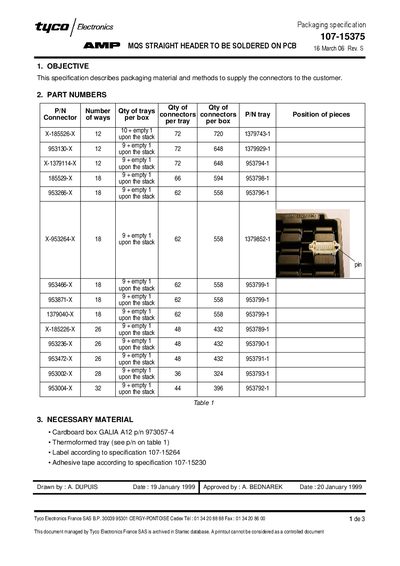

This specification describes packaging material and methods to supply the connectors to the customer.
The document defines the objective of describing packaging material and methods to supply straight header connectors. It lists part numbers, required materials such as cardboard boxes and thermo‑formed trays, and references specific internal specifications.
Packaging procedures are detailed in two phases: stacking trays without gaps and sealing the stack in a cardboard box with label and adhesive. Quality checks, labeling, and palletization guidelines are also provided.
| Connector type | Straight header to be soldered on PCB |
|---|---|
| Cardboard box part number | GALIA A12 p/n 973057-4 |
| Thermoformed tray | see p/n on table 1 |
It describes the packaging material and methods to supply the connectors.
Label according to specification 107‑15264 and adhesive tape according to specification 107‑15230.
Palletization follows specification 107‑15219, especially chapter 3 for stacking pallets.
