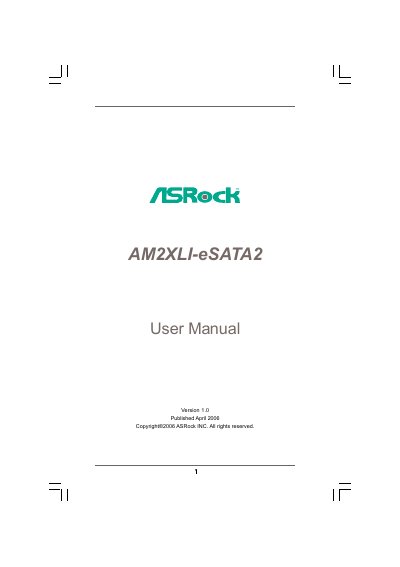

This document is the user manual for AM2XLI-eSATA2, version 1.0, published in April 2006. The manual provides detailed instructions and precautions for using the ASRock AM2XLI-eSATA2 motherboard.
This manual introduces the ASRock AM2XLI-eSATA2 ATX motherboard, its package contents, and detailed hardware specifications. It guides users through CPU, memory, and expansion slot installation, as well as BIOS configuration and software support.
Additional sections cover SATA/eSATAII connectors, dual‑graphics XLI setup, power‑saving features such as AMD’s Cool ’n’ Quiet, and troubleshooting tips. The support CD contents and contact information are also provided. This manual is written in Chinese.
| Form Factor | ATX (12.0‑in x 9.6‑in, 30.5 cm x 24.4 cm) |
|---|---|
| CPU Socket | AM2 940‑Pin socket supporting AMD Athlon 64 / 64FX / 64X2 and Sempron processors |
| Chipset | ULi M1697 |
| Expansion Slots | 3 PCI, 1 PCI‑Express x16/x8, 1 PCI‑Express x8, 2 PCI‑Express x1 |
It uses an AM2 940‑Pin socket that supports AMD Athlon 64, 64FX, 64X2 and Sempron processors.
Enabling AMD’s Cool ’n’ Quiet technology under Windows is strongly recommended.
