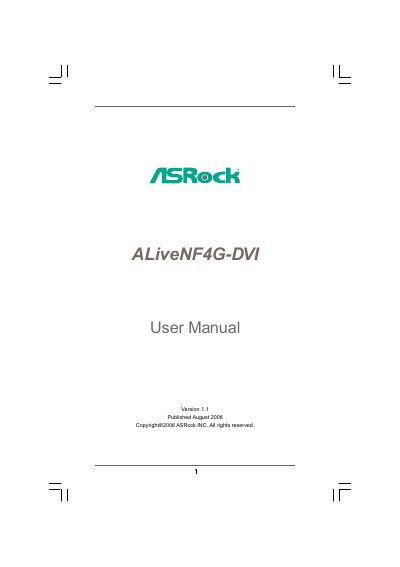

ALiveNF4G-DVI User Manual
This manual introduces the ASRock ALiveNF4G-DVI Micro ATX motherboard, its package contents, and step‑by‑step hardware installation procedures. It also covers BIOS configuration, security settings, and software support via the included Support CD.
Detailed sections describe the motherboard layout, specifications such as CPU socket, chipset, memory support, expansion slots, and integrated graphics. Appendices provide guidance on AMD’s Cool ‘n’ Quiet technology and other utilities. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6" x 9.6") |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX / 64X2 / 64 and Sempron |
| Chipset | Northbridge: nVidia GeForce 6100, Southbridge: nVidia nForce 410 MCP |
| Audio Codec | Realtek ALC888 7.1‑channel HD audio |
| LAN | Realtek PHY RTL8201CL, 10/100 Ethernet, Wake‑On‑LAN |
| Expansion Slots | 2 × PCI, 1 × PCI‑Express ×16, 1 × PCI‑Express ×1 |
The motherboard supports Microsoft Windows 2000, XP, XP Media Center, XP 64‑bit, and Vista.
Enter the BIOS Setup Utility, go to the Security screen, select ‘Change Supervisor Password’ or ‘Change User Password’, and follow the prompts.
Install the AMD Processor Driver from the Support CD, then enable Cool ‘n’ Quiet in the Windows Control Panel under Power Settings.
