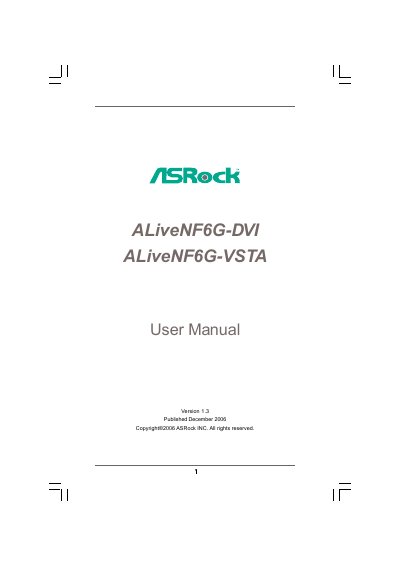

ASRock ALiveNF6G-DVI ALiveNF6G-VSTA User Manual Version 1.3
The ASRock ALiveNF6G-DVI / ALiveNF6G-VSTA motherboard manual provides detailed information on hardware specifications, required components, and step‑by‑step installation procedures. It includes sections on CPU installation, memory modules, expansion slots, and the Easy Dual/Multi‑Monitor features.
Additional chapters cover BIOS configuration, power‑saving technologies such as AMD’s Cool ’n’ Quiet, RAID support, and the contents of the support CD. Safety warnings, warranty disclaimer, and regulatory compliance notes are also included. This manual is written in Chinese.
| Form Factor | Micro ATX (9.6‑in x 9.6‑in) |
|---|---|
| CPU Socket | Socket AM2 for AMD Athlon 64FX/64X2/64 and Sempron |
| Chipset | NVIDIA GeForce 6100 / nForce 430 or GeForce 6150SE / nForce 430 |
| Memory Slots | 4 x DDRII DIMM slots, max 8 GB, DDRII800/667/533 |
| Audio | 7.1‑channel HD Audio (ALC888 codec) |
| LAN | Gigabit LAN (ALiveNF6G‑DVI) Realtek RTL8211B; 10/100 Ethernet (ALiveNF6G‑VSTA) Realtek RTL8201CL |
| SATA Support | 4 x SATAII 3.0 Gb/s connectors, RAID 0/1/0+1/5/JBOD, NCQ, Hot Plug |
It uses a Socket AM2 that supports AMD Athlon 64FX, 64X2, 64 and Sempron processors.
Yes, the SATAII connectors support RAID 0, RAID 1, RAID 0+1, RAID 5 and JBOD.
