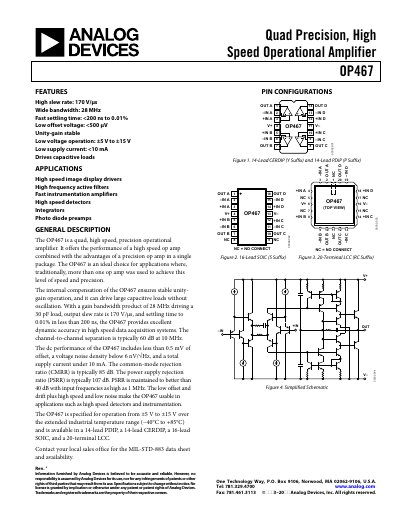

The OP467 is a high-speed, precision operational amplifier from Analog Devices. It offers the performance of a high-speed op amp combined with the advantages of a precision op amp in a single package. The OP467 is an ideal choice for applications where traditionally more than one op amp was used to achieve this level of speed and precision. The internal compensation of the OP467 ensures unity-gain stability with a wide range of capacitive loads, making it possible to achieve high gain-bandwidth product with a single op amp. The OP467 has high input impedance and low output impedance, providing high precision and low noise.
The OP467 quad operational amplifier combines high‑speed performance with precision specifications. It offers a slew rate of 170 V/µs, a 28 MHz gain‑bandwidth product, low offset voltage (<500 µV) and low supply current (<10 mA), making it suitable for high‑speed image drivers, active filters, instrumentation amplifiers, detectors and photodiode pre‑amps.
The device is available in four package options—14‑lead PDIP, 14‑lead CERDIP, 16‑lead SOIC and 20‑terminal LCC—and operates from ±5 V to ±15 V over an industrial temperature range. Detailed electrical characteristics, pin configurations, layout guidelines and a SPICE macro‑model are provided.
| Slew Rate | 170 V/µs |
|---|---|
| Gain‑Bandwidth Product | 28 MHz |
| Offset Voltage | <500 µV |
| Supply Current | <10 mA |
The OP467 has a slew rate of 170 V/µs.
The OP467 is offered in 14‑lead PDIP, 14‑lead CERDIP, 16‑lead SOIC, and 20‑terminal LCC packages.
Typical supply current is less than 10 mA.
