The ADC08060 is a low-power, 8-bit, monolithic analog-to-digital converter with an on-chip track-and-hold circuit. Optimized for low cost, low power, small size and ease of use, this product operates at conversion rates of 20 MSPS to 70 MSPS with outstanding dynamic performance over its full operating range while consuming just 1.3 mW per MHz of clock frequency. That's just 78 mW of power at 60 MSPS. Raising the PD pin puts the ADC08060 into a Power Down mode where it consumes just 1 mW. The unique architecture achieves 7.5 Effective Bits with 25 MHz input frequency. The excellent DC and AC characteristics of this device, together with its low power consumption and single +3V supply operation, make it ideally suited for many imaging and communications applications, including use in portable equipment. Furthermore, the ADC08060 is resistant to latch-up and the outputs are short-circuit proof. The top and bottom of the ADC08060's reference ladder are available for connections, enabling a wide range of input possibilities. The digital outputs are TTL/CMOS compatible with a separate output power supply pin to support interfacing with 3V or 2.5V logic. The output coding is straight binary and the digital inputs (CLK and PD) are TTL/CMOS compatible. The ADC08060 is offered in a 24-lead plastic package (TSSOP) and is specified over the industrial standard range.
The ADC08060 is a low‑power, 8‑bit monolithic analog‑to‑digital converter with an on‑chip track‑and‑hold circuit. It is optimized for low cost, low power (1.3 mW per MHz), small size and ease of use, delivering conversion rates from 20 MSPS to 70 MSPS. The device operates from a single +3 V supply, offers TTL/CMOS‑compatible digital I/O, and includes a power‑down mode that reduces consumption to about 1 mW.

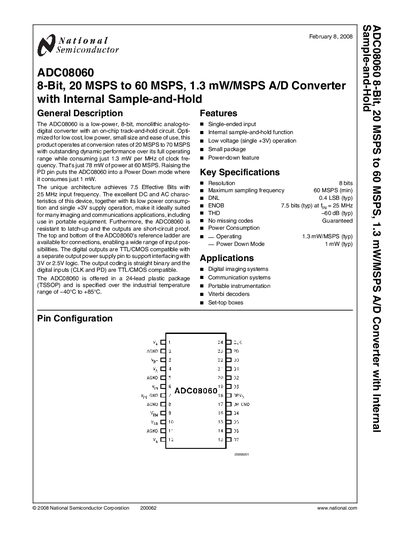

The datasheet provides detailed specifications such as 8‑bit resolution, up to 60 MSPS sampling, 7.5 ENOB at 25 MHz, and typical DNL of 0.4 LSB. Pin configurations, absolute maximum ratings, and typical performance curves are included, along with ordering information for the 24‑lead TSSOP package.
| Resolution | 8 bits |
|---|---|
| Maximum sampling frequency | 60 MSPS (min) |
| Power consumption (operating) | 1.3 mW per MHz |
| Power consumption (power‑down mode) | 1 mW (typ) |
| Effective Number of Bits (ENOB) at 25 MHz | 7.5 bits (typ) |
| Total Harmonic Distortion (THD) | -60 dB (typ) |
| Package | 24‑lead TSSOP |
| Operating temperature range | -40 °C to +85 °C |
The device consumes about 1.3 mW for each megahertz of clock frequency (e.g., 78 mW at 60 MSPS).
It operates from a single +3 V supply.
The ADC08060 is offered in a 24‑lead TSSOP package.
The ENOB is 7.5 bits (typical) at a 25 MHz input frequency.
