The OP07D is a precision, ultralow offset amplifier designed specifically for medical and industrial instrumentation applications. It offers a 150 µV maximum offset voltage, 1.5 µV/°C maximum offset drift, 0.25 µV p-p noise, 115 dB minimum high gain CMRR and PSRR, 1.1 mA typical supply current, and a ±4 V to ±18 V wide supply voltage range.
The OP07D precision op‑amp offers ultra‑low offset voltage (150 µV max), low input bias current (1 nA max) and high CMRR/PSRR, making it suitable for medical, industrial and sensor applications. It is available in 8‑lead DIP and narrow‑body SOIC packages and operates over an extended temperature range of –40 °C to +125 °C.

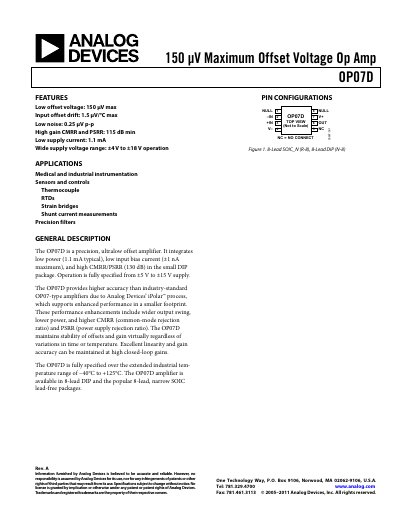

The datasheet provides detailed specifications, absolute maximum ratings, typical performance curves, package dimensions and ordering information. It also includes ESD cautions and thermal resistance data for designers.
| Maximum Offset Voltage | 150 µV |
|---|---|
| Input Bias Current | 1 nA max |
| Supply Current (typical) | 1.1 mA |
| Common‑Mode Rejection Ratio (min) | 120 dB |
The OP07D has a maximum offset voltage of 150 µV.
It operates from ±4 V to ±18 V.
Typical supply current is 1.1 mA.
The device is specified from –40 °C to +125 °C.
