AD8003 is a triple gain, 1.5 GHz high speed op amp from Analog Devices. It features a bandwidth of up to 1650 MHz, a settling time of 12 ns to 0.1%, 2 V step, and a high output drive of 100 mA. It is ideal for high resolution video graphics, professional video, consumer video, high speed instrumentation, and multiplexing applications.

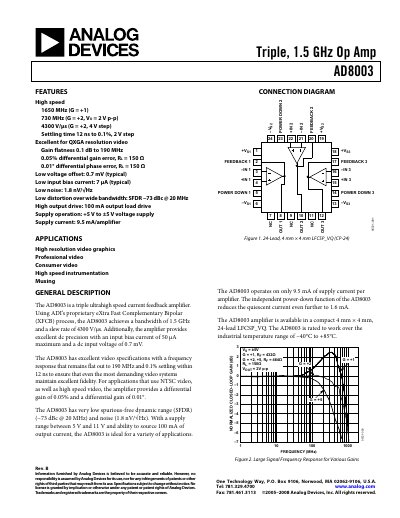

The AD8003 is a triple ultrahigh‑speed current‑feedback operational amplifier built on Analog Devices' eXtra Fast Complementary Bipolar (XFCB) process. It offers a 1.5 GHz –3 dB bandwidth, 4300 V/µs slew rate, and low offset and noise, making it suitable for high‑resolution video, professional video, consumer video, and high‑speed instrumentation applications.
Key features include a wide supply range (+5 V to ±5 V), 100 mA output drive capability, low input bias current (7 µA typical), and excellent dc precision (0.7 mV offset typical). The datasheet provides detailed specifications, absolute maximum ratings, thermal resistance data, PCB layout guidelines, and recommended power‑supply bypassing techniques to ensure optimal performance.
| Bandwidth (‑3 dB) at G=+1 | 1650 MHz |
|---|---|
| Bandwidth (‑3 dB) at G=+2 | 730 MHz |
| Slew Rate (±5 V supply) | 3800 V/µs |
| Settling Time to 0.1 % (G=+2) | 12 ns |
| Supply Voltage Range | +5 V to ±5 V |
| Maximum Output Drive Current | 100 mA |
| Input Offset Voltage (typical) | 0.7 mV |
| Input Bias Current (typical) | 7 µA |
| Input Voltage Noise | 1.8 nV/√Hz |
| Operating Temperature Range | −40 °C to +85 °C |
The AD8003 provides a –3 dB bandwidth of 1650 MHz at gain +1.
It operates from a single‑ended +5 V supply up to a dual ±5 V supply.
The typical input offset voltage is 0.7 mV.
The device can drive up to 100 mA into the load.
