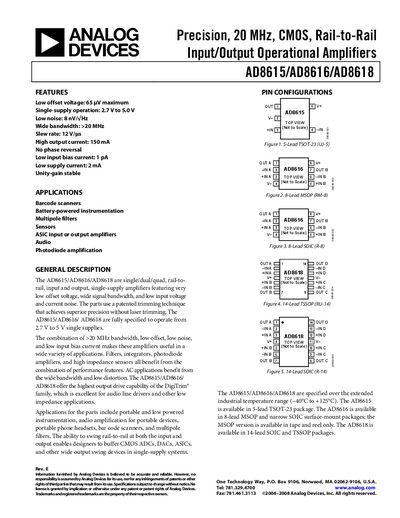

The AD8615/AD8616/AD8618 are single-supply operational amplifiers with features such as low offset voltage, wide bandwidth, and low noise.
The AD8615/AD8616/AD8618 are single, dual, and quad rail‑to‑rail input‑output operational amplifiers that operate from a single 2.7 V to 5 V supply. They feature very low offset voltage, low noise, and low input bias current, making them suitable for barcode scanners, battery‑powered instrumentation, photodiode amplification, audio line drivers, and other high‑speed, low‑impedance applications.
These devices are offered in multiple surface‑mount packages (5‑lead TSOT‑23, 8‑lead MSOP and SOIC, 14‑lead SOIC and TSSOP) and are rated for an industrial temperature range of –40 °C to +125 °C. Absolute maximum ratings, thermal resistance data, and ESD precautions are provided to ensure reliable operation in demanding environments.
| Offset Voltage (typical) | 65 pV |
|---|---|
| Input Bias Current (typical) | 1 pA |
| Slew Rate | 12 V/µs |
| Output Current | 150 mA |
| Gain Bandwidth Product | 24 MHz |
| Power Supply Rejection Ratio | 70‑90 dB |
The typical offset voltage is 65 pV maximum.
They are fully specified to operate from 2.7 V to 5 V single supplies.
Each amplifier can source up to 150 mA of output current.
The gain‑bandwidth product is 24 MHz.
