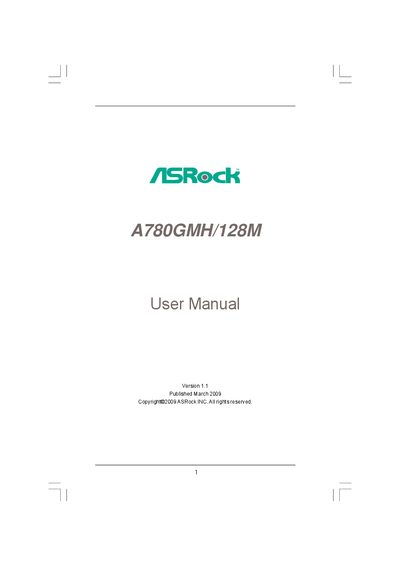

A780GMH/128M User Manual, introduces the features and characteristics of A780GMH/128M
This manual introduces the ASRock A780GMH/128M Micro ATX motherboard, its package contents, and detailed hardware specifications. It covers CPU support, memory configuration, expansion slots, integrated graphics, audio, LAN, and connector layouts.
The guide also explains BIOS setup, operating system installation, RAID and hot‑plug features, overclocking cautions, and how to use the Support CD for drivers and utilities. Safety notices and FCC/CE compliance information are included.
| Form Factor | Micro ATX (9.6‑in x 8.6‑in) |
|---|---|
| CPU Socket | Socket AM2+ / AM2 (AM3 ready) |
| Chipset | Northbridge AMD 780G, Southbridge AMD SB710 |
| Memory Slots | 4 x DDR2 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| Integrated Graphics | AMD Radeon HD 3200 |
| Audio Codec | VIA VT1708S (7.1‑channel) |
| SATA Connectors | 6 x SATAII 3.0 Gb/s (RAID, NCQ, AHCI, Hot Plug) |
| Rear USB Ports | 4 x USB 2.0 |
| Maximum Shared Video Memory | 512 MB |
It supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.
The rear panel provides four USB 2.0 ports.
Yes, the six SATAII connectors support RAID 0, RAID 1, RAID 10, and JBOD.
The integrated Radeon HD 3200 can use up to 512 MB of shared system memory.
