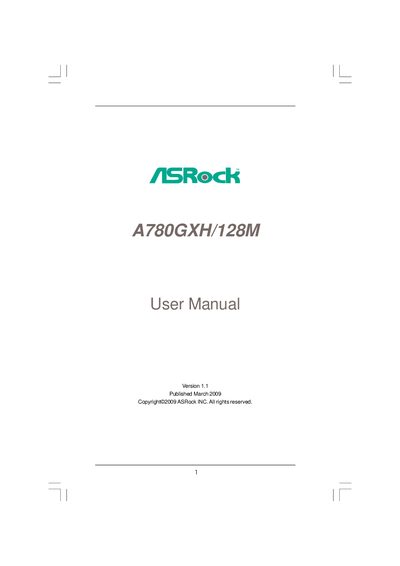

ASRock A780GXH/128M User Manual
This manual guides you through the hardware installation of the ASRock A780GXH/128M motherboard, including package contents, CPU and memory installation, and rear panel connections. It also covers BIOS configuration, driver installation, and operating system support.
Additional sections describe advanced features such as overclocking, integrated graphics, audio, LAN, and SATA RAID options, as well as troubleshooting and safety warnings.
| Form Factor | ATX (12.0" x 8.4") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Maximum CPU Power | 140 W |
| Northbridge Chipset | AMD 780G |
| Southbridge Chipset | AMD SB710 |
| Memory Slots | 4 × DDR2 DIMM |
| Maximum Memory Capacity | 16 GB |
| Supported Memory Types | DDR2 1066/800/667/533 non‑ECC |
| Integrated Graphics | AMD Radeon HD 3200 with 128 MB side‑port memory |
| Audio Codec | VIA VT1708S (7.1 CH Windows Vista Premium) |
| LAN | Realtek RTL8111DL Gigabit Ethernet |
| SATA Connectors | 6 × Serial ATAII 3.0 Gb/s (RAID, NCQ, AHCI, Hot Plug) |
| USB Ports | 4 × USB 2.0 rear ports |
It supports Socket AM2+ / AM2 processors, including AMD Phenom, FX, Athlon 64, Athlon 64 X2 Dual‑Core, Athlon X2 Dual‑Core, Athlon 64, and Sempron CPUs.
The board provides four DDR2 DIMM slots with a maximum total memory capacity of 16 GB.
It features an integrated AMD Radeon HD 3200 graphics processor with 128 MB of side‑port memory and up to 512 MB of shared system memory.
The motherboard supports Microsoft Windows XP, XP Media Center, XP 64‑bit, Vista, and Vista 64‑bit.
