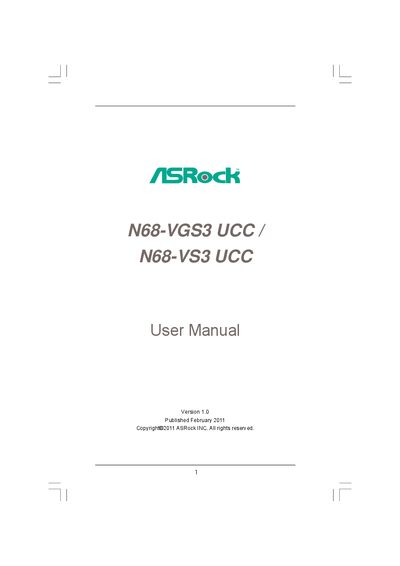

This document is the user manual for ASRock 11111 N68-VGS3 UCC / N68-VS3 UCC, version 1.0, published in February 2011. The manual includes specifications and information about the product, as well as usage instructions and precautions.
This manual introduces the ASRock N68-VGS3 UCC and N68-VS3 UCC motherboards, describing their features, specifications, and the steps required to install and configure the hardware. It also covers BIOS configuration, over‑clocking options, and the contents of the support CD.
Key sections include package contents, detailed specifications, motherboard layout, I/O panel descriptions, CPU and memory installation, expansion slot usage, SATA setup, BIOS utility navigation, and software support for Windows operating systems.
| Form Factor | Micro ATX (8.5" x 7.0") |
|---|---|
| CPU Support | AM3 processors (AMD Phenom II, Athlon II, Sempron) |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Expansion Slots | 1 × PCI Express x16, 1 × PCI |
| SATA Connectors | 4 × Serial ATAII 3.0 Gb/s, RAID and Hot‑Plug support |
The board supports AM3 processors, including AMD Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2, and Sempron models.
It provides four Serial ATAII 3.0 Gb/s connectors that support RAID and hot‑plug functions.
The motherboard is a Micro ATX board measuring 8.5 inches by 7.0 inches (21.6 cm × 17.8 cm).
