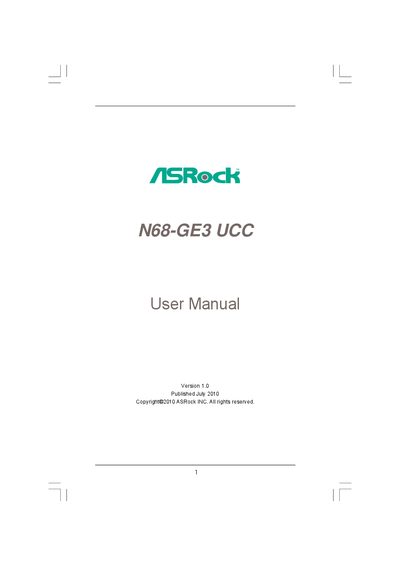

N68-GE3 UCC User Manual, Introduces the features and usage of the product
This manual introduces the ASRock N68-GE3 UCC motherboard, a Micro ATX board that supports AMD AM3 processors, DDR3 memory, and integrated NVIDIA graphics. It includes safety notices, warranty information, and regulatory compliance details.
The guide covers package contents, step‑by‑step hardware installation, BIOS configuration, driver and utility installation from the support CD, and troubleshooting. It also explains advanced features such as UCC (Unlock CPU Core), Untied Overclocking Technology, SATA hot‑plug, and RAID support.
| Form Factor | Micro ATX (9.6" x 8.2") |
|---|---|
| CPU Support | AMD AM3 processors (Phenom II, Athlon II, Sempron) |
| Chipset | NVIDIA GeForce 7025 / nForce 630a |
| Memory Slots | 4 DDR3 DIMM slots |
| Maximum Memory | 16 GB |
| Expansion Slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 2 × PCI |
| Integrated Graphics | NVIDIA GeForce 7025, up to 256 MB shared memory |
| Audio Codec | VIA VT1718S 7.1‑channel HD Audio |
| LAN | Gigabit Ethernet 10/100/1000 Mb/s |
| SATA Connectors | 4 × Serial ATAII 3.0 Gb/s (RAID, Hot‑Plug) |
It supports AMD AM3 processors, including Phenom II X6/X4/X3, Athlon II X4/X3/X2, and Sempron models.
The board provides four DDR3 DIMM slots with a maximum total memory capacity of 16 GB.
Yes, it has four Serial ATAII connectors that support hot‑plug, RAID 0/1/0+1/5, and NCQ.
The board includes an integrated NVIDIA GeForce 7025 graphics processor with up to 256 MB of shared memory.
