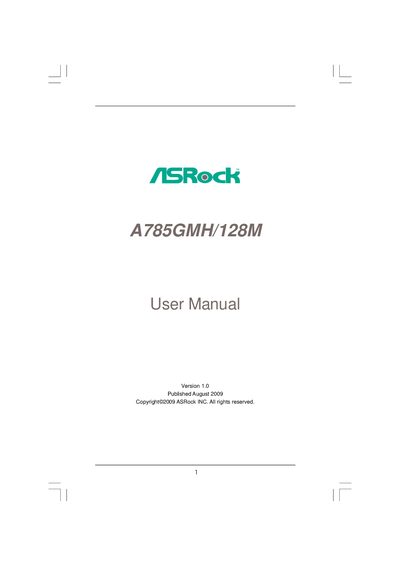

This document is the user manual for ASRock INC.'s 11111 A785GMH/128M, version 1.0, published in August 2009. The manual provides detailed specifications and information about the product, and grants authorization for the purchaser to duplicate the documentation for backup purposes.
This manual provides step‑by‑step instructions for installing the ASRock A785GMH/128M motherboard, including CPU, memory, and expansion cards. It also details the BIOS setup utility, hardware specifications, and the contents of the support CD.
Additional sections cover software installation, driver setup, and troubleshooting tips, with safety cautions for overclocking and handling of components.
| Form Factor | Micro ATX (9.6" x 8.6") |
|---|---|
| CPU Socket | Socket AM2+ / AM2 |
| Northbridge Chipset | AMD 785G |
| Southbridge Chipset | AMD SB710 |
| Memory Slots | 4 DDR2 DIMM slots |
| Maximum Memory Capacity | 16 GB |
| PCI Express x16 Slots | 1 (PCIe 2.0 x16) |
| SATAII Connectors | 6 (3 Gb/s, RAID, Hot‑Plug) |
| Integrated Graphics | AMD Radeon HD 4200 |
| Audio Codec | VIA VT1708S (7.1 CH) |
| LAN Controller | Realtek RTL8111DL Gigabit |
It supports Socket AM2+ and AM2 processors, including AMD Phenom, Athlon 64, and Sempron families.
The board includes six Serial ATAII (3 Gb/s) connectors with RAID and hot‑plug support.
It features an integrated AMD Radeon HD 4200 graphics processor.
The motherboard can handle up to 16 GB of DDR2 memory.
