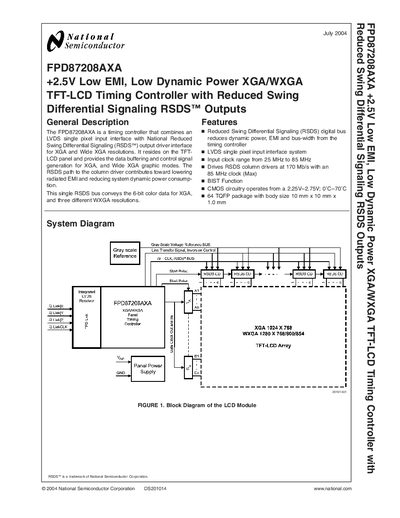

FPD87208AXA is a timing controller from National Semiconductor Corporation for XGA and Wide XGA resolutions. It uses low EMI and low dynamic power design, and supports RSDS™ digital bus, which can lower radiated EMI and reduce system dynamic power consumption.
The FPD87208AXA is a timing controller that integrates an LVDS single‑pixel input interface with National's Reduced Swing Differential Signaling (RSDS) output driver for XGA and WXGA resolutions. It resides on the TFT‑LCD panel, providing data buffering and control‑signal generation while reducing radiated EMI and dynamic power consumption.
Key features include a 2.25‑2.75 V supply range, 25‑85 MHz input clock, RSDS output data rate of 170 Mb/s, a 64‑lead TQFP package, and operation from 0 °C to 70 °C. Detailed electrical characteristics, pin descriptions, and mechanical dimensions are provided for system designers.
| Supply Voltage (Vop) | 2.25‑2.75 V |
|---|---|
| Input Clock Range | 25 MHz to 85 MHz |
| Package Type | 64‑lead TQFP |
| RSDS Output Data Rate | 170 Mb/s |
| Total Pin Count | 64 |
It operates from 2.25 V to 2.75 V.
The device accepts clock frequencies between 25 MHz and 85 MHz.
It comes in a 64‑lead TQFP package with a total of 64 pins.
