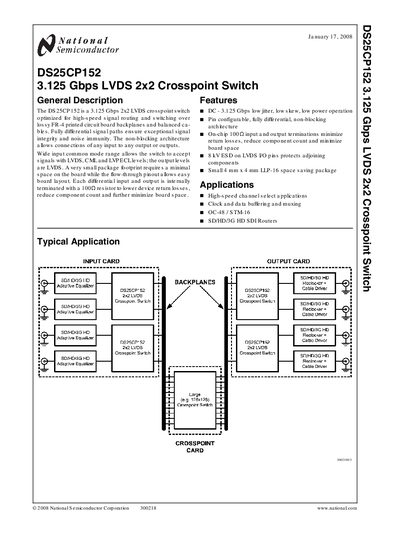

The DS25CP152 3.125 Gbps LVDS 2x2 Crosspoint Switch is a high-performance LVDS crosspoint switch optimized for high-speed signal routing and switching over lossy FR-4 printed circuit board backplanes and balanced cables.
The DS25CP152 is a 3.125 Gbps 2×2 LVDS crosspoint switch optimized for high‑speed signal routing and switching on lossy FR‑4 backplanes. It features fully differential, non‑blocking architecture, on‑chip 100 Ω terminations, and a wide input common‑mode range for LVDS, CML and LVPECL signals.
Typical applications include high‑speed channel selection, clock and data buffering, and SD/HD/3G‑HD SDI routing. The device offers low jitter, low skew, and low power consumption, making it suitable for demanding video and data communication systems.
| Data Rate | 3.125 Gbps |
|---|---|
| Supply Voltage Range | -0.3 V to +4 V |
| Differential Output Voltage | 250‑450 mV |
| Low‑to‑High Propagation Delay | 340‑500 ps |
| Supply Current (EN high) | 64‑77 mA |
| Package Type | SQA16A (16‑pin) |
| Operating Temperature Range | -40 °C to +85 °C |
The device can be powered from -0.3 V up to +4 V.
The LVDS differential output voltage ranges from 250 mV to 450 mV.
The DS25CP152 comes in a 16‑pin package.
The device is specified for operation from –40 °C to +85 °C.
