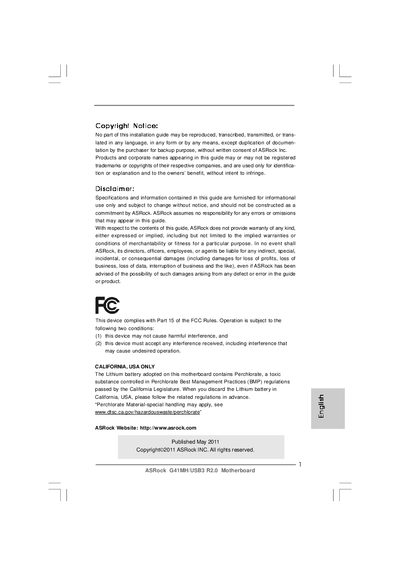

This document is the user manual for the ASRock INC. 11111 G41MH/USB3 R2.0 motherboard, providing specifications and information about the product, as well as ASRock's disclaimer.
The ASRock G41MH/USB3 R2.0 is a Micro‑ATX motherboard featuring an Intel G41 northbridge, Intel ICH7 southbridge, and support for LGA 775 processors. It provides dual‑channel DDR3 memory, multiple expansion slots, and integrated USB 3.0 ports.
This Quick Installation Guide covers package contents, step‑by‑step installation, BIOS features, and unique ASRock utilities such as OC Tuner and Intelligent Energy Saver. Detailed specifications and connector layouts are included to help users assemble and configure the system correctly.
| Form Factor | Micro ATX (9.6" x 8.4") |
|---|---|
| CPU Socket | LGA 775 |
| Supported CPUs | Intel Core2 Extreme / Quad / Duo, Pentium Dual Core, Celeron Dual Core, Celeron |
| Chipset | Northbridge Intel G41, Southbridge Intel ICH7 |
| Expansion Slots | 1 x PCIe x16, 1 x PCIe x1, 2 x PCI |
| Graphics | Intel GMA X4500 |
| Audio Codec | VIA VT1705 (5.1 CH HD Audio) |
| LAN Controller | Realtek RTL8111E Gigabit Ethernet |
| USB 3.0 Ports | 2 x USB 3.0 (ASMedia ASM1042) |
| SATA Connectors | 4 x SATAII 3.0 Gb/s |
No, USB 3.0 ports do not support keyboard or mouse connections and they do not support Wake‑Up.
The board is a Micro‑ATX form factor measuring 9.6 inches by 8.4 inches (24.4 cm × 21.3 cm).
The board uses a Realtek RTL8111E Gigabit Ethernet controller.
