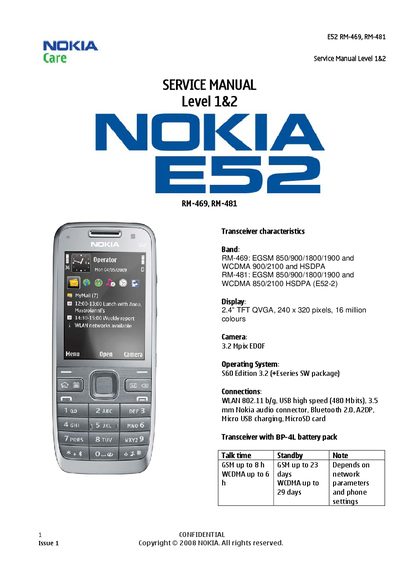

This document is a Nokia E52 RM-469, RM-481 service manual, which introduces the characteristics of the product, including frequency band, display screen, camera, operating system, connection method, etc.
This Service Manual Level 1 & 2 is intended for qualified Nokia service technicians who need to repair or maintain the Nokia E52 mobile phone (models RM‑469 and RM‑481). It provides detailed instructions on disassembly, component replacement, ESD protection, battery handling, and torque specifications, together with the phone’s technical specifications.
The manual also includes safety warnings, care and maintenance guidelines, and a parts list for authorized components. All procedures must be performed in an ESD‑protected environment and using only Nokia‑approved parts and tools.
| Network Bands (RM‑469) | EGSM 850/900/1800/1900, WCDMA 900/2100, HSDPA |
|---|---|
| Network Bands (RM‑481) | EGSM 850/900/1800/1900, WCDMA 850/2100, HSDPA |
| Display | 2.4" TFT QVGA, 240 × 320 pixels, 16 million colours |
| Camera | 3.2 Mpix EDOF |
| Operating System | S60 Edition 3.2 (+Eseries SW package) |
| Connectivity | WLAN 802.11 b/g, USB 480 Mbit/s, 3.5 mm audio, Bluetooth 2.0 + A2DP, Micro‑USB charging, MicroSD card |
The E52 supports EGSM 850/900/1800/1900 and WCDMA 900/2100 (RM‑469) or WCDMA 850/2100 (RM‑481) with HSDPA.
Only batteries approved by Nokia may be used, and they must be charged with Nokia‑approved chargers.
