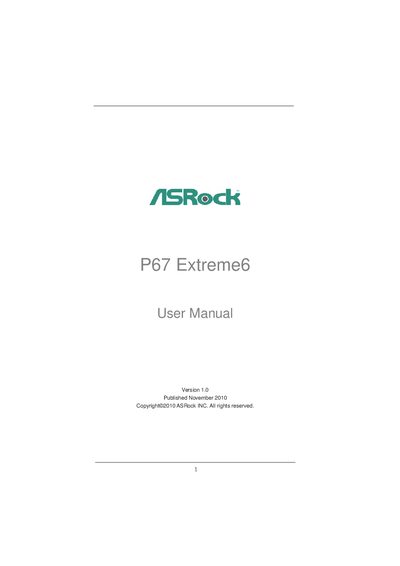

P67 Extreme6 User Manual
This manual introduces the ASRock P67 Extreme6 ATX motherboard and guides users through hardware installation, BIOS configuration, and operating‑system setup. It also lists the package contents and provides safety and regulatory information.
Key sections cover step‑by‑step installation of the CPU, memory, and storage devices, detailed UEFI BIOS menus, RAID and SATA configuration, and how to use the Support CD for drivers and utilities. The final chapter explains installing Windows on drives larger than 2 TB using the UEFI boot process.
| Form Factor | ATX (12.0‑in x 9.6‑in) |
|---|---|
| CPU Support | 2nd Generation Intel Core i7/i5/i3, LGA1155 |
| Chipset | Intel® P67 |
| Memory Slots | 4 × DDR3 DIMM slots |
| Maximum Memory Capacity | 32 GB |
| SATA3 Connectors | 6 × 6.0 Gb/s SATA3 ports (RAID supported) |
| LAN | 2 × Gigabit Ethernet ports |
| Audio | 7.1‑channel HD audio (Realtek ALC892) |
The motherboard includes six SATA3 6.0 Gb/s connectors that support RAID, NCQ, AHCI and Hot Plug functions.
It uses a 64 Mb AMI BIOS with UEFI GUI support.
