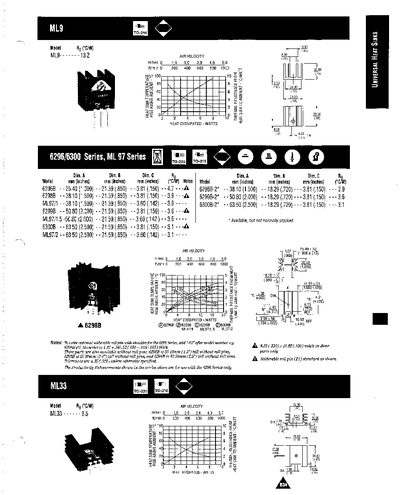

The Thermaloy series from AAVID includes the ML9, 6296/6300, ML97, and ML33 models, which are solder‑able thermal interface pads used for heat management in electronic assemblies. The sheet lists each model's physical dimensions, recommended roll‑pin options, and tolerance information.
Key performance data such as air‑velocity limits (up to 5.0 m/sec) and heat‑dissipation capacity (watts) are provided, along with detailed dimensional tables for each model. Optional features like solderable roll pins and shoulder dimensions are also noted.
| Air Velocity (m/sec) range | 0 – 5.0 |
|---|---|
| 6296B dimensions | 25.40 mm × 21.59 mm × 3.81 mm |
| Tolerance | ±0.25 mm |
| Roll pin option | Optional solderable roll pin (P1) available |
The 6296B model measures 25.40 mm by 21.59 mm with a thickness of 3.81 mm.
The ML33 series can operate up to an air velocity of 5.0 m/sec.
Yes, the 6296 series can be ordered with an optional solderable roll pin with shoulder, and versions without roll pins are also available.
