The HBCS-1100 is a high-resolution optical reflective sensor module with a focused emitter and detector, high resolution, visible light emitter, lens filtered to reject ambient light, TO-5 miniature sealed package, photodiode and transistor output, and solid-state reliability.
The HBCS-1100 is a fully integrated optical reflective sensor module featuring a 0.190 mm spot size, a 700 nm visible LED emitter, and combined photodiode and transistor outputs. It is housed in a TO‑5 miniature sealed package with a glass window and includes a bifurcated aspheric acrylic lens that focuses both emitter and detector to a single point.

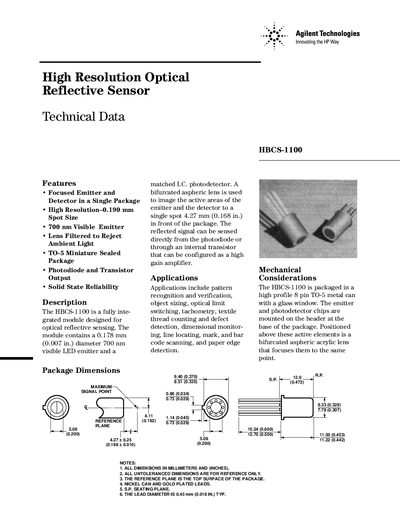

The datasheet provides detailed mechanical dimensions, electrical ratings, and optical characteristics, along with recommended mounting methods, schematic diagrams, and performance graphs for applications such as pattern recognition, object sizing, tachometry, and barcode scanning.
| Spot size | 0.190 mm |
|---|---|
| LED wavelength | 700 nm (visible) |
| Package type | TO‑5 miniature sealed package |
| Maximum power dissipation | 120 mW |
| Collector output current (max) | 8 mA |
| Supply voltage range | -0.5 V to 20 V |
| Forward voltage (LED) | 1.6 V to 1.8 V |
| Reverse breakdown voltage (LED) | 5 V |
| Dark current | 5 pA to 200 pA |
| Capacitance | 45 pF |
| Flux responsivity | 0.22 A/W |
| Detector area | 0.160 mm² |
| Thermal resistance (package) | 85 °C/W |
The sensor provides a spot size of 0.190 mm.
It uses a 700 nm visible LED emitter.
It is housed in a TO‑5 miniature sealed package with a glass window.
The maximum collector output current is 8 mA.
