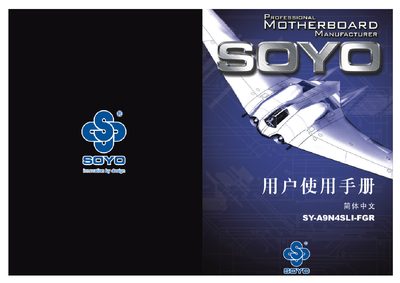

This manual covers the Soyo SY‑A9N4SLI‑FGR motherboard, describing its layout, connectors, and supported components. It includes detailed BIOS setup steps, RAID configuration options, and troubleshooting information.
Key sections include BIOS and integrated peripheral settings, power‑management options, PCI‑Express slot descriptions, memory module installation, and networking features. The document also provides RAID mode explanations and driver installation guidance for Windows XP/2000.
| PCI Express Slots | x1, x16 |
|---|---|
| PCI Express Slots | x16 |
| Network | Gigabit LAN |
| PS/2 Connectors | Keyboard and Mouse |
| Audio Output | S/PDIF |
It uses AwardBIOS version 49.
It includes a Gigabit LAN controller.
