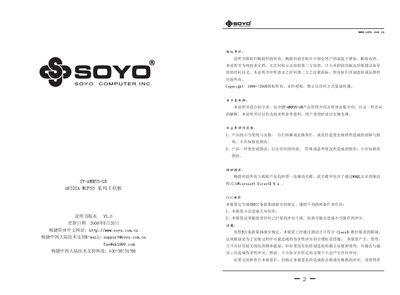

SY-AMN55-GR nVIDIA MCP55 series mainboard manual, mainly introduces the product features, software installation, some terms explanation
The SY-AMN55-GR board uses the NVIDIA MCP55 chipset, supports AMD Socket AM2 CPUs, up to 4 GB DDR2 memory on four DIMM slots, and offers integrated Gigabit LAN, eight‑channel audio, and multiple SATA/IDE ports with RAID 0/1/0+1/JBOD support. It features three PCI Express slots (one x16, one x8) and standard ATX form factor (305 mm × 245 mm).
This manual guides users through safe hardware installation, CPU and memory mounting, PCI‑Express and SLI graphics setup, IDE/SATA device connection, BIOS configuration, driver installation, and detailed RAID controller setup, including CMOS jumper settings and power‑management options. This manual is written in Chinese.
| Chipset | NVIDIA MCP55 |
|---|---|
| CPU Socket | AMD Socket AM2 |
| Memory Slots | 4 DDR2 DIMM slots, up to 4 GB |
| Memory Type | DDR2 533/667/800 MHz, non‑ECC, unbuffered |
| SATA Connectors | 4 Serial ATA ports |
| IDE Connectors | 2 Parallel ATA ports |
| Integrated LAN | Gigabit Ethernet |
| Audio | On‑board codec, up to 8‑channel |
| Power Management | ACPI 1.0, APM 1.2 |
| Dimensions | 305 mm × 245 mm |
Align the notched side of the CPU with the socket, place the processor into the socket, and lower the latch lever to secure it.
Use the CMOS clear jumper JP2 to reset the BIOS settings.
Enter the NVIDIA BIOS, select RAID Mode, choose the desired RAID configuration (e.g., Striping, Mirroring), then save and exit.
It supports up to four DDR2 DIMM modules, non‑ECC unbuffered, at 533/667/800 MHz, for a maximum of 4 GB.
