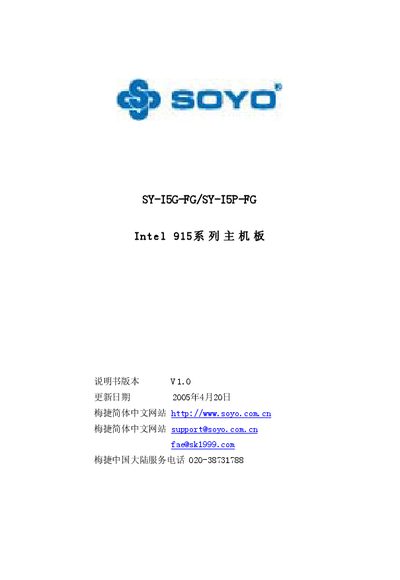

This document is the user manual of SY-I5G-FG/SY-I5P-FG motherboard from SOYO, which mainly introduces the motherboard's specifications, functional features, hardware installation and software installation
This manual covers the SY-I5G-FG and SY-I5P-FG motherboards based on the Intel 915P/9156 chipset. It includes an introduction, detailed hardware specifications, BIOS configuration, driver installation steps, and safety notices such as FCC and CSC compliance.
The document describes CPU and memory support, expansion slot layout, integrated audio and networking features, power‑management options, and provides troubleshooting guidance for BIOS defaults and hardware monitoring. This manual is written in Chinese.
| Chipset | Intel 915P/9156 northbridge, Intel 82801FB (ICH6) southbridge |
|---|---|
| CPU Support | Intel Pentium 4 LGA775 (Prescott) with 533 MHz or 800 MHz FSB |
| Serial ATA Ports | 4 × Serial ATA (150 MB/s) connectors |
| Integrated Ethernet | On‑board 1000 Mbps high‑performance network controller |
| Audio Codec | ALC850, 8‑channel audio |
| Board Dimensions | 305 mm × 240 mm (ATX form factor) |
| Power Management | Supports ACPI 1.0 and APM 1.2, S1 (POS) sleep state |
It supports Intel Pentium 4 LGA775 processors (Prescott core) with front‑side bus speeds of 533 MHz or 800 MHz.
Enter the BIOS setup and select the “Load Optimized Defaults” option.
