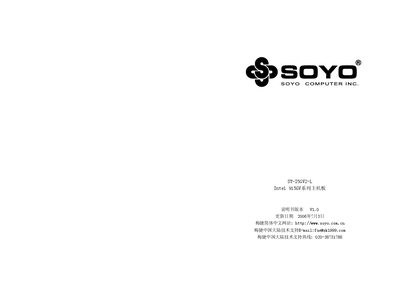

This manual introduces the SY-I5GV2-L Intel 915GV series mainboard and its features, software installation, and some terms.
This manual covers the SY-I5GV2-L motherboard based on the Intel 915GV chipset. It includes detailed instructions for installing the CPU, memory, storage devices, power supply, and peripheral connectors, as well as safety warnings and FCC/CSC compliance notes.
The document also explains BIOS features, power‑management options, and provides a full list of specifications such as supported processors, memory types, expansion slots, and integrated components. This manual is written in Chinese.
| Chipset | Intel 915GV + ICH6 |
|---|---|
| CPU Socket | LGA775, supports Pentium 4 / Celeron D |
| Front‑Side Bus | 800 MHz / 533 MHz |
| Memory Slots | 2 DDR DIMM + 2 DDR2 DIMM (max 2 GB, cannot mix) |
| IDE Ports | 1 × Ultra ATA33/66/100 |
| USB Ports | 8 × USB 2.0 (compatible with USB 1.1) |
| Network | Integrated 100 M Ethernet |
| Audio | On‑board 6‑channel audio codec |
| Power Management | ACPI 1.0, APM 1.2, supports S1 (POS) mode |
| BIOS | Flash ROM, updateable via software |
It provides two DDR DIMM slots and two DDR2 DIMM slots, for a total of four memory slots, but DDR and DDR2 modules cannot be used together.
The board uses an LGA775 socket that supports Intel Pentium 4 and Celeron D processors.
Power off the computer, disconnect the AC power, and use the CLR_CMOS jumper to clear the CMOS data.
