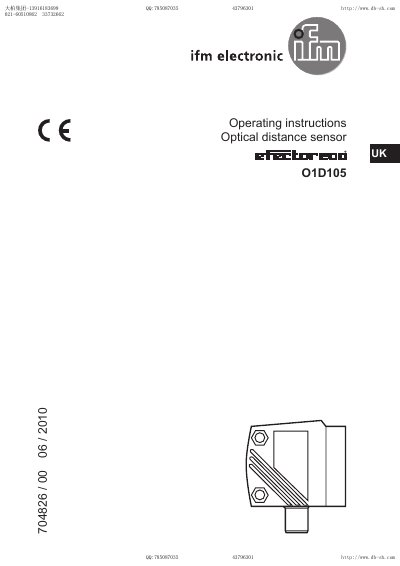

This manual introduces the functions and characteristics of the O1D105 optical distance sensor for reference of engineers and operators.
The O1D105704826 is an optical distance sensor that measures distances from 0 m to 10 m and provides background suppression for objects beyond 10 m up to 100 m. It features a 10‑segment display, two configurable outputs, and an analogue output proportional to the measured distance.
The manual details safety instructions, installation conditions, electrical connection requirements (EN 50178, SELV, PELV), menu navigation, parameter configuration (hysteresis, window, analogue modes), and maintenance procedures, including how to reset the unit to factory settings. This manual is written in Chinese.
| Background suppression range | >10 – 100 m |
|---|---|
| Display type | 10‑segment alphanumeric display |
| Number of outputs | Two configurable outputs (OUT1, OUT2) |
| Analogue output | Proportional to distance on OUT2 |
| Power supply requirements | EN 50178, SELV, PELV |
Select the menu option “Reset all parameters to factory setting” in the programming mode.
It keeps the switching state of the output stable when the measured value varies around the sensing range, and can be applied to both OUT1 and OUT2.
The sensor uses a class‑1 laser; visible laser light is hazardous, and users must avoid staring into the beam and apply the provided laser warning labels.
