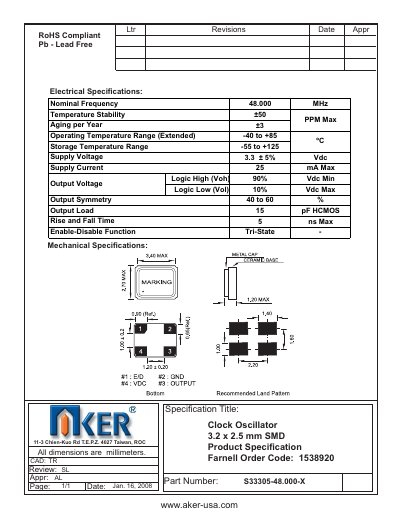

S33305-48.000-X Clock Oscillator Product Specification, supports a frequency of 48.000MHz, operating voltage of 3.3 ± 5% Vdc, operating temperature range of -40 to +85 ºC, storage temperature range of -55 to +125
This document provides the full specifications for the Aker S33305-48.000-X clock oscillator, a 3.2 × 2.5 mm SMD part. It lists the electrical parameters such as frequency, supply voltage, output levels, and timing performance, as well as mechanical dimensions and temperature ranges.
Key features include a nominal frequency of 48 MHz, temperature stability of ±50 ppm, a supply voltage of 3.3 V ± 5 %, and a maximum supply current of 25 mA. The oscillator operates from –40 °C to +85 °C (extended) and can be stored from –55 °C to +125 °C. Output specifications cover logic high/low levels, symmetry, load, and rise/fall times.
| Nominal Frequency | 48.000 MHz |
|---|---|
| Temperature Stability | ±50 PPM |
| Max Aging per Year | ±3 |
| Operating Temperature Range (Extended) | -40 °C to +85 °C |
| Storage Temperature Range | -55 °C to +125 °C |
| Supply Voltage | 3.3 V ± 5 % |
| Supply Current | 25 mA max |
| Logic High Output (Voh) | 90 % Vdc min |
| Logic Low Output (Vol) | 10 % Vdc max |
| Output Symmetry | 40 % to 60 % |
| Output Load | 15 pF HCMOS |
| Rise and Fall Time | 5 ns max |
| Enable‑Disable Function | Tri‑State |
The oscillator operates at a nominal frequency of 48.000 MHz.
It operates from –40 °C to +85 °C (extended range).
It requires a supply voltage of 3.3 V ± 5 %.
