This document is about the product specifications of Microprocessor Crystal Unit Low Profile 2.5 x 3.2mm Surface Mount. It includes electrical specifications, frequency range, operating temperature range, dimensions, and other information.

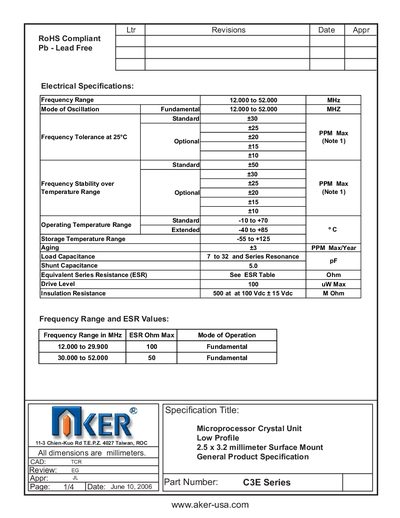

The C3E Series microprocessor crystal unit is a low‑profile, 2.5 × 3.2 mm surface‑mount component designed for frequencies from 12.000 MHz to 52.000 MHz. It offers a load capacitance range of 7 – 32 pF, drive level up to 100 µW, and aging of +3 ppm per year. Standard operating temperature is –10 °C to +70 °C, with an extended range of –40 °C to +85 °C.
Mechanical details include a seam‑sealed ceramic‑metal package, dimensions in millimeters, and recommended land patterns. The part is supplied in tape‑and‑reel packaging (3000 pieces per reel) with specified solder reflow characteristics and optional temperature‑range markings in the part number.
| Frequency Range | 12.000 to 52.000 MHz |
|---|---|
| Load Capacitance | 7 – 32 pF |
| Operating Temperature (Standard) | –10 °C to +70 °C |
| Operating Temperature (Extended) | –40 °C to +85 °C |
| Drive Level | 100 µW Max |
| Package Size | 2.5 × 3.2 mm SMD |
| Packaging | Tape and Reel (3000 pcs per reel) |
It operates from 12.000 MHz up to 52.000 MHz.
The unit supports load capacitance from 7 pF to 32 pF.
It is supplied in tape‑and‑reel packaging, with each reel holding 3000 pieces.
