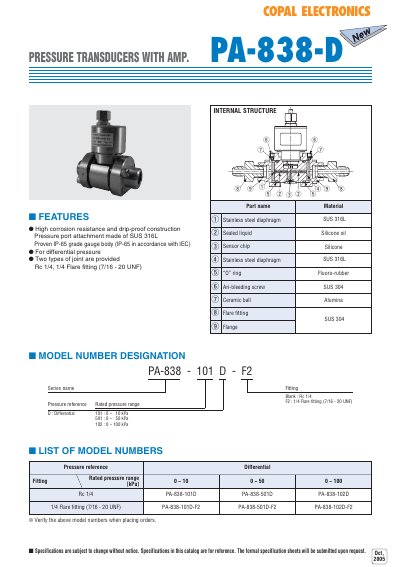

PA-838-D series pressure transducer is a product with high corrosion resistance and drip-proof construction. The measuring pressure range is 0~10kPa, 0~50kPa, 0~100kPa, and the joint types are Rc 1/4 and 1/4 Flare fitting(7/16-20 UNF).
The PA-838-D is a pressure transducer with built‑in amplification, featuring high corrosion resistance and a drip‑proof IP‑65 rated gauge body. It is available with Re 1/4 or 1/4 flare fittings and uses a stainless‑steel diaphragm (SUS 316L) sealed with silicone oil.
The datasheet lists rated pressure ranges of 0‑10 kPa, 0‑50 kPa, and 0‑100 kPa, with maximum pressures up to 500 kPa. Electrical specifications include a 24 V DC supply (±10 %), 4‑20 mA output, and a linearity/hysteresis of ±0.5 % FS. Environmental tests cover vibration, shock, moisture resistance, and temperature ranges from –20 °C to 70 °C.
| Rated pressure range | 0‑10 kPa, 0‑50 kPa, 0‑100 kPa |
|---|---|
| Maximum pressure | 200 kPa, 300 kPa, 500 kPa |
| Operating temperature range | –20 °C to 70 °C |
| Supply voltage | 24 V DC ±10 % |
| Output current | 4 mA to 20 mA DC |
| IP rating | IP‑65 |
| Diaphragm material | Stainless steel SUS 316L |
| Sealed liquid | Silicone oil |
| Linearity / Hysteresis | ±0.5 % FS |
| Response time | ≈ 2 ms (max) |
It operates from a 24 V DC supply with a tolerance of ±10 % (including ripple voltage).
The transducer has an IP‑65 rating, providing drip‑proof protection.
It can operate from –20 °C up to 70 °C.
The device outputs a current of 4 mA to 20 mA DC.
