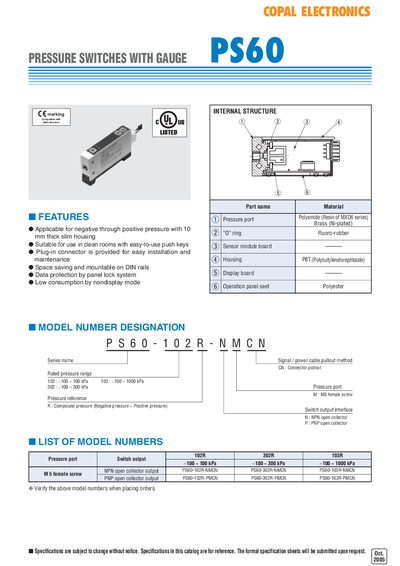

The PS60 series pressure switch with gauge is suitable for negative pressure to positive pressure, with a thickness of 10 mm, a slim housing, and is suitable for use in clean rooms. It has easy-to-use push keys and a plug-in connector for easy installation and maintenance. It is space-saving and can be mounted on DIN rails. The panel lock system protects data and the non-display mode reduces power consumption.
The PS60 pressure switches with gauge are designed for negative to positive pressure applications and feature a slim 10 mm housing, DIN‑rail mounting, and a plug‑in connector. Multiple model numbers (e.g., PS60‑102R‑NMCN, PS60‑103R‑PMCN) cover rated pressure ranges from –100 kPa to 1000 kPa and offer NPN or PNP open‑collector outputs.
The manual includes standard specifications, environmental test data, circuit diagrams, outline dimensions, and a list of accessories such as DIN‑rail adapters and cables. It also details installation settings, display options, and wiring connections for easy integration into control panels.
| Rated pressure range | -100 ~ 100 kPa (102), -100 ~ 300 kPa (302), -100 ~ 1000 kPa (103) |
|---|---|
| Maximum pressure | 200 kPa (102), 600 kPa (302), 1500 kPa (103) |
| Break‑down pressure | 500 kPa (102), 1000 kPa (302), 2000 kPa (103) |
| Operating temperature range | -10 °C to 50 °C |
| Supply voltage | 12 V DC to 24 V DC (+10 %) |
| Consumption current | max 30 mA |
| Display element | 8‑digit LED |
| Output interface | NPN or PNP open‑collector |
The PS60‑102 model is rated for a pressure range of –100 kPa to 100 kPa.
The PS60 operates from a 12 V to 24 V DC supply, with a tolerance of ±10 %.
The PS60 provides either NPN or PNP open‑collector outputs.
