This document is a list of model configurations for COPAL Electronics PS6 series pressure switches

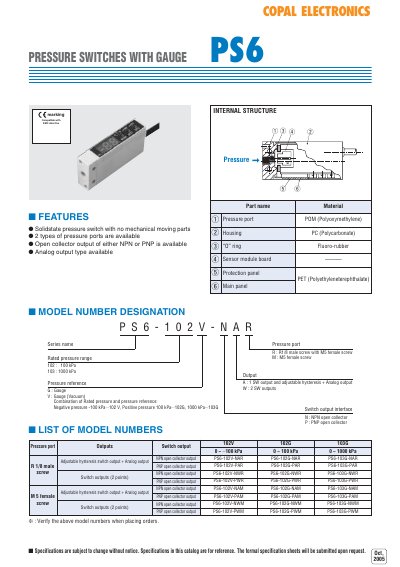

This document provides the technical specifications for Copal's PS6 series pressure switches with gauge. It lists model designations, pressure reference types, output interfaces, and material construction, along with a comprehensive list of model numbers covering various pressure ports and output configurations.
Additional sections describe the environmental test conditions, circuit diagrams, switching operation, and mechanical dimensions. Recommended torque settings for adjustment screws and wiring details for different output types are also included. This manual is written in Chinese.
| Rated pressure range (102V) | 0 ~ -100 kPa |
|---|---|
| Rated pressure range (102G) | 0 ~ 100 kPa |
| Rated pressure range (103G) | 0 ~ 1000 kPa |
| Supply voltage | 12 ~ 24 V DC ±10 % |
| Maximum consumption current | 80 mA |
The switches operate from 12 V to 24 V DC with a tolerance of ±10 %.
PS6‑102V covers 0 ~ ‑100 kPa, PS6‑102G covers 0 ~ 100 kPa, and PS6‑103G covers 0 ~ 1000 kPa.
A maximum torque of 30 mN·m is recommended for the hysteresis adjustment screw.
