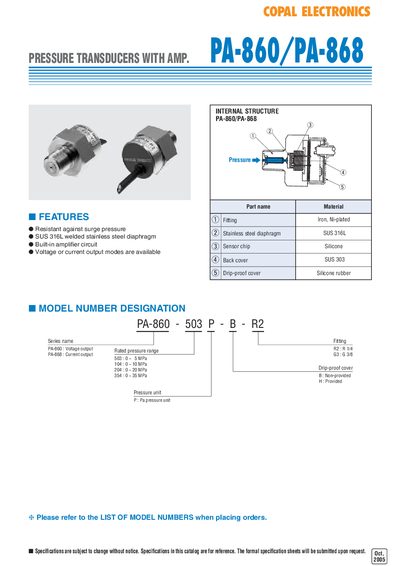

This document introduces Copal Electronics' PA-860/PA-868 pressure transducers, which have a built-in amplifier circuit and can provide voltage or current output.
The PA-860 and PA-868 are pressure transducers equipped with built‑in amplifiers. They are offered with voltage (PA-860) or current (PA-868) output modes and feature stainless‑steel diaphragms, silicone sensor chips and optional drip‑proof covers.
Key specifications include supply voltage of 12‑24 V DC (±10 %), output ranges of 1‑5 V or 4‑20 mA, rated pressure ranges from 0‑10 MPa up to 0‑35 MPa, and an operating temperature range of –10 °C to 75 °C. The devices are designed for hydraulic oil pressure measurement and meet IP‑65 protection when the drip‑proof cover is installed.
| Supply voltage | 12 ~ 24 V DC ±10 % |
|---|---|
| Output voltage (PA-860) | 1 ~ 5 V DC |
| Maximum pressure (PA-860‑503) | 10 MPa |
| Operating temperature range | -10 ~ 75 °C |
| Storage temperature range | -20 ~ 90 °C |
| Insulation resistance | 100 MΩ (500 V DC) |
| Dielectric strength | 350 V AC for 60 s |
| Pressure port sizes | R 1/4, G 3/8 |
| Net weight | Approx. 170 g |
| Drip‑proof cover rating | IP‑65 |
They operate from 12 V to 24 V DC with a tolerance of ±10 %.
The transducers can operate between –10 °C and 75 °C.
