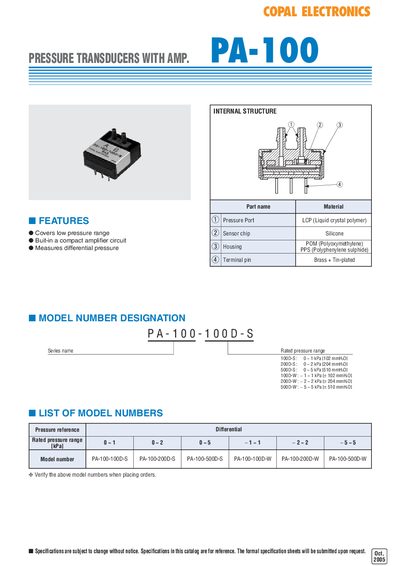

PA-100 series pressure sensors are low range differential pressure sensors, built-in amplifiers, can measure differential pressure.
The PA-100 series are low‑pressure transducers that incorporate a compact amplifier circuit and measure differential pressure. Several variants are offered (‑100D‑S, ‑200D‑S, ‑500D‑S, and the corresponding ‑W versions) covering ranges from 0‑1 kPa up to 0‑5 kPa.
The document provides standard electrical specifications, environmental limits, and mechanical dimensions, including supply voltage, output range, temperature and humidity limits, and durability tests such as shock and moisture resistance.
| Rated pressure range | 0‑1 kPa (100D‑S), 0‑2 kPa (200D‑S), 0‑5 kPa (500D‑S) |
|---|---|
| Maximum pressure | 5 kPa (100D‑S), 10 kPa (200D‑S), 25 kPa (500D‑S) |
| Operating temperature range | -20 °C to 70 °C |
| Supply voltage | 5 V DC ±10 % |
| Consumption current | Maximum 5 mA |
| Output voltage range | 0.5 V to 4.5 V |
| Insulation resistance | 100 MΩ (50 V DC) |
| Dielectric strength | 50 V AC for 60 s (leakage ≤1 mA) |
| Net weight | ≈ 8 g |
| Operating humidity | 35 %‑85 % RH (no condensation) |
It operates from a 5 V DC supply with a tolerance of ±10 %.
The device can be used from –20 °C up to 70 °C.
The PA-100‑500D‑S can measure up to 25 kPa of pressure.
The output voltage varies between 0.5 V and 4.5 V.
