PA-500-501G-06 series pressure sensors are high-precision pressure sensors with high output gain, temperature compensation function, and are suitable for liquid and gas pressure measurement.

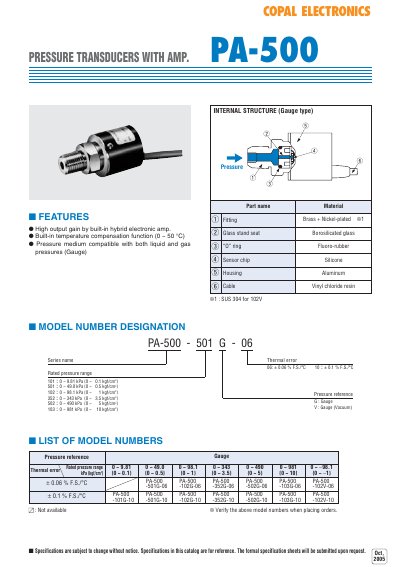

The PA-500 series pressure transducers from Copal feature a built‑in hybrid electronic amplifier, temperature compensation from 0 °C to 50 °C, and compatibility with both liquid and gas pressure media. They are available in gauge (G) and vacuum (V) versions with a variety of pressure ranges.
Standard specifications include a supply voltage of 12‑24 V DC, output voltage 1‑5 V, maximum output current 1 mA, and an operating temperature range of –20 °C to 80 °C. Environmental tests cover humidity, shock, and moisture resistance, and the device dimensions and wiring details are provided for integration.
| Output voltage | 1~5 V |
|---|---|
| Supply voltage | 12~24 V DC (±10%) |
| Operating temperature range | -20 °C to 80 °C |
| Maximum output current | 1 mA |
The PA-500 operates from –20 °C up to 80 °C.
It requires a DC supply of 12 to 24 V (±10%).
The output voltage is adjustable between 1 V and 5 V.
