This document describes logic gate optocouplers with very high CMR and wide VCC range. They feature a minimum CMR of 10 kV/µs, wide operating VCC range, 300 ns propagation delay, low input current, hysteresis, totem pole output without pullup resistor, and more.

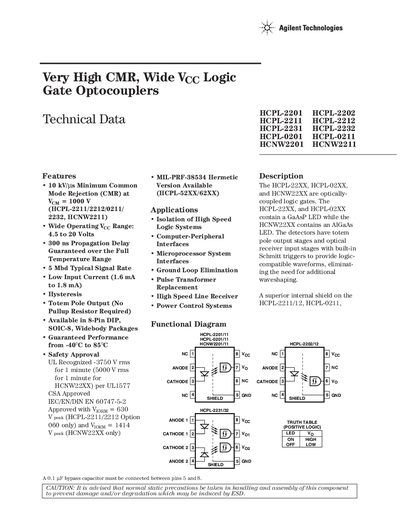

The handbook describes the HCPL‑22XX, HCPL‑02XX and HCNW‑22XX families of high‑speed logic gate optocouplers. It lists key features such as very high common‑mode rejection, low input current, totem‑pole output, and a wide operating voltage range (4.5 V – 20 V). Package options include 8‑pin DIP, SOIC‑8 and wide‑body variants, and the devices are qualified for operation from –40 °C to 85 °C.
Detailed sections cover functional diagrams, truth tables, mechanical drawings, recommended solder‑reflow profiles, and regulatory approvals (UL, CSA, IEC/EN/DIN). Electrical characteristics such as propagation delay, isolation voltage, and output power are provided for each sub‑family, along with ordering information and option codes.
| Minimum Common Mode Rejection (CMR) | 10 kV/µs at VOM = 1000 V |
|---|---|
| Propagation Delay | 300 ns (guaranteed over full temperature range) |
| Input Current | 1.6 mA – 1.8 mA |
| Operating Temperature Range | -40 °C – 85 °C |
| UL Safety Approval | UL 1577 – 3750 V rms for 1 min (5000 V rms for HONW22XX) |
| Maximum Working Insulation Voltage (HCPL‑2211/2212) | 630 V peak |
| Maximum Working Insulation Voltage (HCNW‑22XX) | 1414 V peak |
The propagation delay is specified as 300 ns and is guaranteed over the full temperature range.
