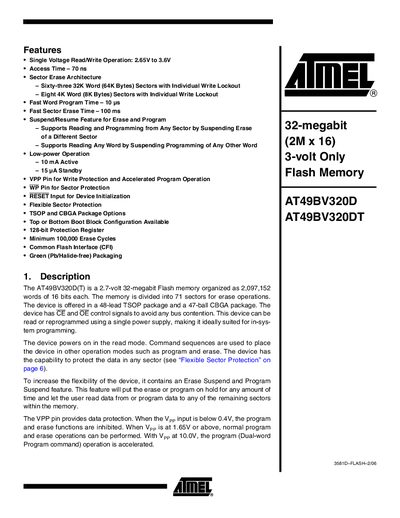

The AT49BV320D(T) is a 2.7V 32-megabit Flash memory organized as 2,097,152 words of 16 bits each. The memory is divided into 71 sectors for erase operations. The device is offered in a 48-lead TSOP package and a 47-ball CBGA package. The device has CE and OE control signals to avoid any bus contention. This device can be read or reprogrammed using a single power supply, making it ideally suited for in-system programming. The device powers on in the read mode. Command sequences are used to place the device in other operating modes.
The AT49BV320D(T) is a 32‑megabit flash memory device offered in TSOP and CBGA packages. It supports single‑voltage read/write operation from 2.65 V to 3.6 V, provides 71 erase sectors, and includes flexible sector protection with soft‑lock, hard‑lock and a WP pin. The device features low‑power operation (10 mA active, 15 pA standby) and a 128‑bit protection register for security.
The datasheet details command sequences for read, program, erase, suspend/resume, and status register handling. It also describes the VPP pin behavior, sector‑locking states, and provides revision history and contact information for Atmel worldwide offices.
| Operating Voltage (Read/Write) | 2.65 V to 3.6 V |
|---|---|
| Access Time | 70 ns |
| Fast Sector Erase Time | 100 ms |
| Fast Word Program Time | 10 ps |
| Active Power Consumption | 10 mA |
| Package Options | TSOP, CBGA |
| Memory Capacity | 32 Mbit (2,097,152 × 16 bits) |
| Minimum Erase Cycles | 100,000 cycles |
| Protection Register Size | 128 bits |
It operates from 2.65 V up to 3.6 V.
The datasheet specifies a minimum of 100,000 erase cycles.
It is available in TSOP and CBGA package options.
