The GDI1-C51 series DC current transducer is a measurement module that uses the optoelectronic isolation principle to convert the measured small DC current into a proportional output of DC current or DC voltage signal. It has the characteristics of high accuracy, high linearity, high integration, small size, simple structure, long-term stability and adaptability to various working environments.
The GDI1-C51 series is a high‑precision, high‑stability, highly integrated DC current transmitter designed for use in industries such as petroleum, chemical, railway, communications and automation control. It offers fast response and accurate measurement of low‑level currents.

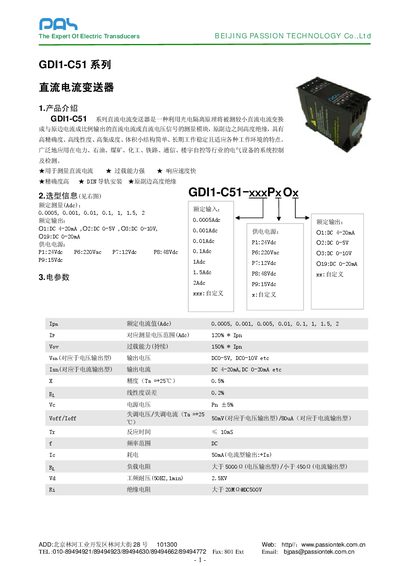

This manual includes the product introduction, model information, electrical specifications, mechanical characteristics, connection diagrams, output options (4‑20 mA, 0‑5 V, 0‑10 V), power consumption, load resistance, and safety precautions for installation and operation. This manual is written in Japanese.
| Output options | DC 4‑20 mA, DC 0‑5 V, DC 0‑10 V |
|---|---|
| Accuracy (Ta = +25 °C) | ±0.5 % |
| Linearity | ±0.2 % |
| Power consumption | 50 mA |
| Load resistance | 5000 Ω (max) |
It can output DC 4‑20 mA, DC 0‑5 V, or DC 0‑10 V signals.
The accuracy is ±0.5 % at a temperature of +25 °C.
The transmitter consumes about 50 mA of current.
It can drive up to 5000 Ω load resistance.
