HJIE-C41 series AC current transmitter is a measurement module that utilizes Hall effect and open-loop measurement principle to convert the measured current into a proportional DC current or voltage output with high accuracy, high linearity, high integration, small size, simple structure, long-term stability, and adaptability to various working environments. It is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The HJIE-C41 series is an alternating‑current transmitter designed for high accuracy, high integration, and compact size, suitable for applications such as power, petrochemical, railway, communications, and building automation. It converts measured current into proportional output signals for monitoring and control.

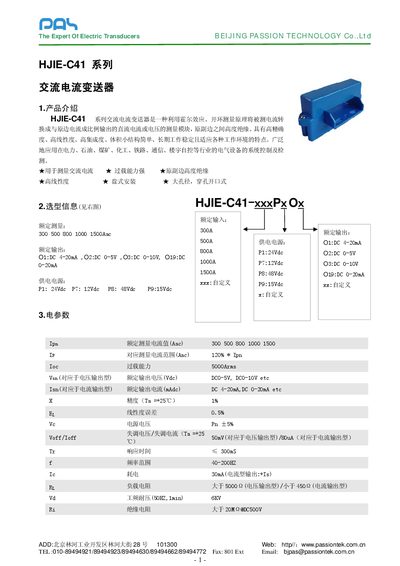

The manual covers product introduction, model information, technical specifications, environmental limits, wiring diagrams, output characteristics, and safety precautions, helping users install, configure, and maintain the transmitter safely and correctly. This manual is written in Chinese.
| Rated measurement current (Aac) | 300‑1500 Aac |
|---|---|
| Accuracy (at 25 °C) | ±1 % |
| Power consumption | 30 mA |
| Load resistance | 5000 Ω (high), 450 Ω (low) |
| Frequency range | 40‑200 Hz |
The accuracy is ±1 % at 25 °C.
