The JU3-C55 series three-phase AC voltage transducer is a measurement module that converts the measured three-phase AC voltage into a proportional output of DC current or DC voltage signals corresponding to the three phases using the principle of electromagnetic induction (mutual induction). It has the characteristics of high accuracy, high linearity, high integration, small size, simple structure, long-term stable operation, and adaptability to various working environments. It is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The JU3-C55 series three‑phase AC voltage transmitter from Passion Technology converts three‑phase AC voltage into proportional DC current or voltage signals, offering high accuracy, linearity, and insulation for use in power, petrochemical, mining, and other industrial applications.

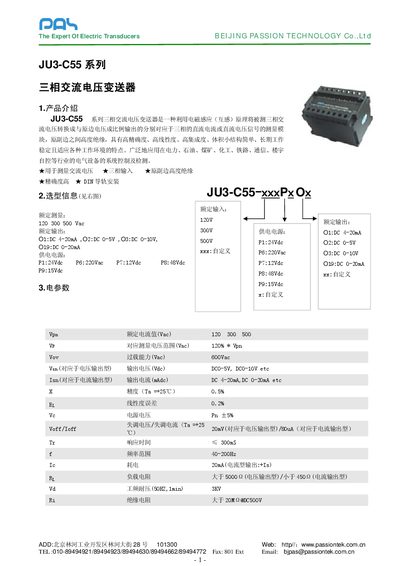

The manual includes product introduction, selection information, electrical parameters, mechanical and wiring diagrams, output characteristic curves, and safety instructions, guiding users on installation, connection, and operation. This manual is written in Chinese.
| Output current range (mA) | 4‑20 mA |
|---|---|
| Output voltage range (V) – high | 0‑10 V |
| Accuracy (Ta = +25 °C) | ±0.5 % |
| Linearity error | ±0.2 % |
| Overload capacity | 600 V |
| Response time | ≤300 ms |
| Frequency range | 40‑200 Hz |
| Operating temperature | -10 °C to +70 °C |
| Weight | ≈300 g |
| Insulation resistance | ≥20 MΩ |
| Overvoltage withstand (50 Hz) | 3 kV |
| Load resistance | ≥5 MΩ (voltage output) / ≤450 Ω (current output) |
| Power supply options | 24 VDC, 220 VAC, 12 VDC, 48 VDC |
The device provides an accuracy of ±0.5 % at a test temperature of +25 °C.
The transmitter can operate from –10 °C up to +70 °C.
Ensure no exposed conductive parts, avoid ESD, only qualified engineers should perform wiring, do not adjust the internal potentiometer, and protect the device from severe vibration or high temperature.
