The HJIE-C43 series AC current transducer is a measurement module that uses the Hall effect and open-loop measurement principle to convert the measured current into a proportional output of DC current or voltage with the original current. It has the characteristics of high accuracy, high linearity, high integration, small size, simple structure, long-term stable operation, and adaptability to various working environments. It is widely used in the system control and detection of electrical equipment in industries such as power, petroleum, coal mining, chemical, railway, communication, and building automation.
The HJIE-C43 series alternating current transmitter from Passion Technology is designed for high‑precision current measurement in industrial applications such as power, petrochemical, railway and building automation. It offers high accuracy, stability and compact size.

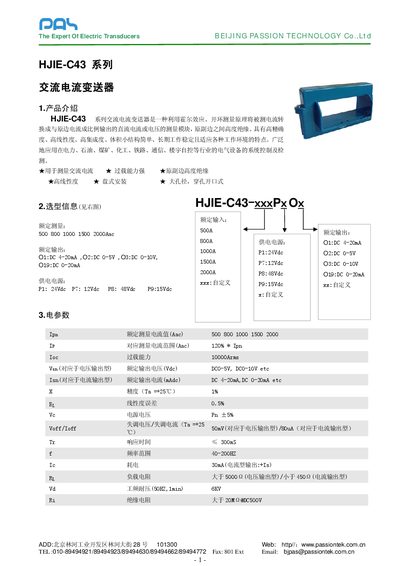

This manual covers product introduction, model information, technical specifications, environmental limits, connection details, output characteristics, and safety precautions to guide users through installation, configuration and safe operation. This manual is written in Chinese.
| Output signal types | DC 4‑20 mA, 0‑5 V, 0‑10 V |
|---|---|
| Accuracy (Ta = +25 °C) | ±1 % |
| Repeatability | ±0.5 % |
| Power consumption (current mode) | 30 mA |
| Operating temperature | -25 °C to +70 °C |
| Storage temperature | -40 °C to +85 °C |
| Weight | 600 g |
| Output frequency range | 40‑200 Hz |
| Maximum output current capacity | 10 000 A rms |
It can output DC 4‑20 mA, 0‑5 V or 0‑10 V signals.
The device operates from –25 °C to +70 °C and can be stored from –40 °C to +85 °C.
Avoid touching bare terminals, prevent ESD, and always connect power and signal wires with correct polarity.
