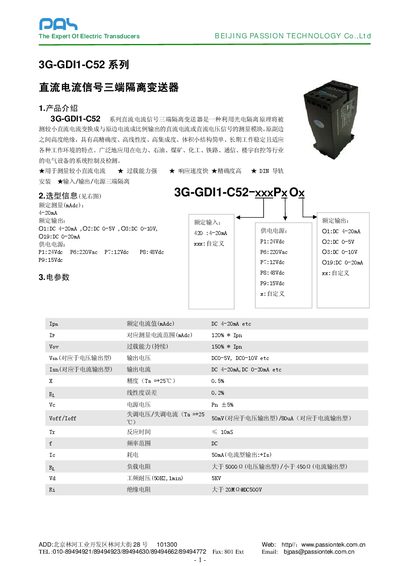

The manual provides specifications, wiring, installation and safety instructions for the Passion Technology 3G‑GDI1‑C52 three‑terminal isolated DC current…
The 3G‑GDI1‑C52 series is a three‑terminal isolated DC current signal transmitter that converts small measured DC currents into proportional DC current or voltage outputs while providing high isolation between primary and secondary sides. It is designed for high accuracy, linearity, compact size and stable long‑term operation, suitable for power, petrochemical, mining, railway, communication and building‑automation applications.
The document includes product introduction, selection information, electrical and general parameters, mechanical and wiring diagrams, output characteristic curves and safety guidelines. It details the available supply voltages, output options, accuracy, response time and environmental limits, and provides step‑by‑step wiring instructions and precautions for safe installation. This manual is written in Chinese.
| Measurement range (mA) | 4‑20 mA |
|---|---|
| Output options | DC 4‑20 mA, DC 0‑5 V, DC 0‑10 V, DC 0‑20 mA |
| Supply voltage options | 24 Vdc, 220 Vac, 12 Vdc, 48 Vdc, 15 Vdc |
| Accuracy (Ta = +25 °C) | ±0.5 % |
| Linearity error | ±0.2 % |
| Overload capacity (continuous) | 150 % × Ipn |
| Response time | ≤ 10 ms |
| Power consumption (current output mode) | 50 mA |
| Insulation resistance | ≥ 20 MΩ @ 500 VDC |
| Operating temperature range | -10 °C to +70 °C |
| Storage temperature range | -45 °C to +85 °C |
| Weight | ≈ 200 g |
| Operating humidity | 20‑90 % non‑condensing |
| Enclosure material compliance | UL94‑V0 |
The device can be powered from 24 Vdc, 220 Vac, 12 Vdc, 48 Vdc or 15 Vdc supply sources.
Connect the input positive to terminal 1, power positive to terminal 5, power ground to terminal 6, output positive to terminal 3, input negative to terminal 4 and output negative to terminal 8.
The device provides an accuracy of ±0.5 % at a temperature of 25 °C.
