This document is a datasheet for B45196H1226J106 tantalum capacitor. This capacitor has ultra-high volumetric efficiency, excellent solderability, stable temperature and frequency characteristics, low leakage current, low dissipation factor, low self-inductance, high resistance to shock and vibration, and can be used without a series resistor. It is suitable for applications such as telecommunications, data processing, measuring and control engineering, automotive electronics, medical engineering, and DC/DC converters

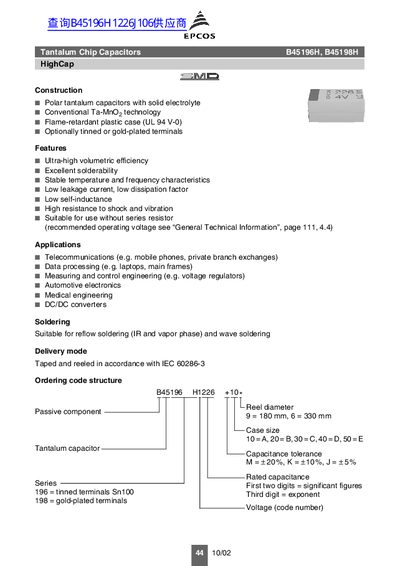

The EPCOS product leaflet describes the B45196H and B45198H series of polar tantalum chip capacitors with solid electrolyte. It lists construction details, features such as ultra‑high volumetric efficiency, low leakage, and suitability for reflow soldering, as well as typical applications in telecommunications, automotive, and medical electronics.
The document provides ordering codes, dimensional drawings, marking conventions, and a full table of electrical specifications (rated voltage, capacitance range, tolerance, operating temperature, failure rate, service life, and leakage current) for both tinned and gold‑plated terminal versions.
| Rated voltage | 4 V to 50 V |
|---|---|
| Rated capacitance | 0.15 pF to 1500 pF |
| Capacitance tolerance | +10 % / +20 % (±5 % on request) |
| Failure rate | < 23 FIT (at 40 °C, V < Vp) |
| Service life | > 500 000 h |
| Leakage current | 10 nA (at Vp, 5 min, 20 °C) |
| Terminal options | Tinned or gold‑plated |
The capacitors are offered with either tinned terminals or gold‑plated terminals.
The rated voltage ranges from 4 V up to 50 V, depending on the specific part.
Yes, they are suitable for reflow soldering (IR and vapor phase) and wave soldering.
