SIMID 1210-A is a SMT chip inductor from Murata, which features high Q factor and high resonance frequency. It is suitable for filtering, coupling, decoupling and other applications.
The SIMID B82422-A series are surface‑mount inductors available in 1210 (EIA) or 3225 (IEC) sizes. They offer a wide inductance range (0.0082 µH to 100 µH) and rated currents from 65 mA up to 700 mA, making them suitable for filtering, coupling, decoupling, antenna systems, automotive electronics, and telecommunications.

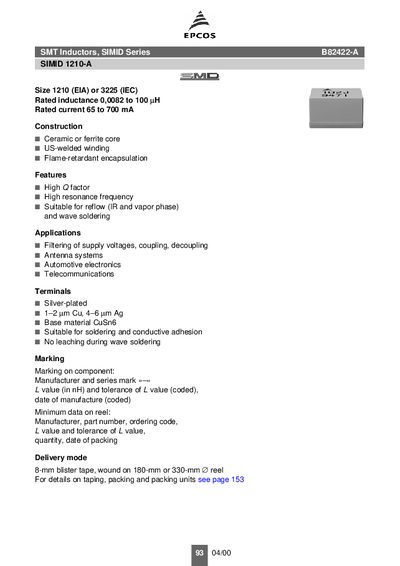

The datasheet lists detailed technical parameters such as Q factor, self‑resonance frequency, DC resistance, weight (≈50 mg), and climatic category. Ordering codes, tolerance options, and packaging (8‑mm blister tape on 180‑mm or 330‑mm reels) are also provided, along with dimensional drawings and impedance curves measured with HP analyzers.
| Size | 1210 (EIA) or 3225 (IEC) |
|---|---|
| Rated inductance | 0.0082 to 100 µH |
| Rated current | 65 to 700 mA |
| Q factor | High |
| Self‑resonance frequency (min) | Measured with network analyzer HP 8753 |
| DC resistance (FAmax) | Measured at 20 °C |
| Weight | Approx. 50 mg |
| Climatic category | IEC 60068‑1 (‑55 °C/+125 °C, 56 days damp heat) |
The B82422-A is rated for currents from 65 mA up to 700 mA.
It is supplied on 8‑mm blister tape, wound on 180‑mm or 330‑mm reels.
The component weighs approximately 50 mg.
It is offered in 1210 (EIA) or 3225 (IEC) package sizes.
