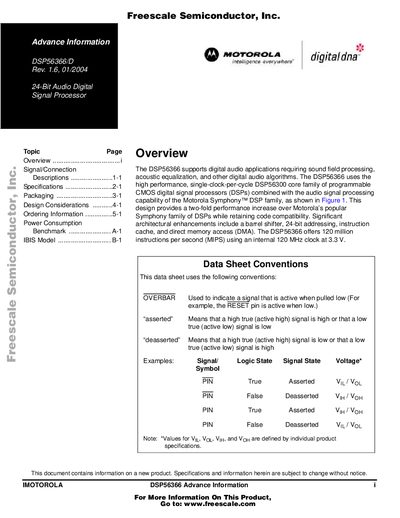

This document introduces the information of the new product, DSP56366, which supports digital audio applications requiring sound field processing, acoustic equalization, and other digital audio algorithms.
This document gives an overview of the Motorola DSP56366, a 24‑bit audio digital signal processor. It describes the core architecture, performance improvements over earlier models, and the intended digital‑audio applications such as acoustic equalization and sound‑field processing.
Detailed sections cover features, signal and connection descriptions, power and ground requirements, packaging, and a list of related documentation. The information is intended for system designers and software developers who need to integrate the DSP56366 into their products.
| Instruction rate | 120 MIPS |
|---|---|
| Clock speed | 120 MHz |
| Package type | 144‑pin plastic LQFP |
| Core voltage | 3.3 V |
| On‑chip memory (Y‑Data RAM) | 7 K × 24 bit |
It can execute up to 120 million instructions per second (120 MIPS).
The chip is supplied in a 144‑pin plastic LQFP package.
The device operates from a 3.3 V supply.
The processor includes a six‑channel DMA controller.
