iC-WK BMST WK1D is a laser diode produced by LASER COMPONENTS company. It is suitable for 5V input voltage and the working temperature range is 0 to 50 degrees Celsius.

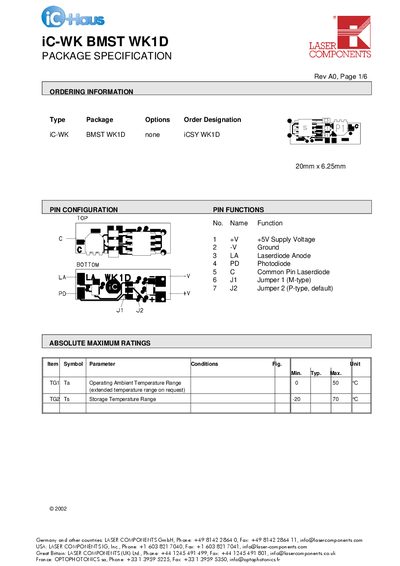

This document details the package specification for the iC-WK BMST WK1D laser driver module. It includes ordering designations, pin configuration, absolute maximum ratings, and basic electrical characteristics such as supply voltage and turn‑on delay.
Additional sections cover the device assembly, part list, physical dimensions, detailed dimension tables, revision history, and general handling instructions, including warnings about reflow soldering and legal disclaimer.
| Package size | 20 mm × 6.25 mm |
|---|---|
| Supply voltage | 5 V ±5 % |
| Overall thickness | 3.1 mm |
The package measures 20 mm by 6.25 mm.
It operates from a 5 V supply with a ±5 % tolerance.
The device can operate from 0 °C to 50 °C.
