This is a product specification sheet that details the product's parameters, performance, and application scenarios.

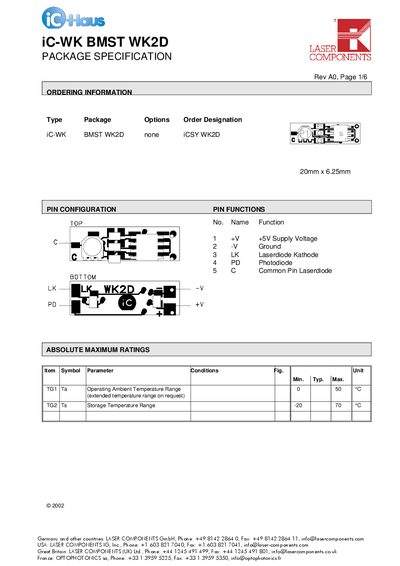

This document describes the iC-WK BMST WK2D laser driver package. It includes ordering options, pin functions, absolute maximum ratings, and basic electrical characteristics such as supply voltage and current.
Key physical data are given, including a 20.00 mm × 6.25 mm outline, overall thickness of 3.1 mm, and detailed dimension tables for pads, drills, and connector positions. The assembly part list and schematic diagram aid in board design and manufacturing.
| Supply Voltage | +5 V |
|---|---|
| Permissible Supply Voltage (VDD) | 5.5 V |
| Operating Ambient Temperature Range | 0 °C to 50 °C (extended on request) |
| Storage Temperature Range | -20 °C to 70 °C |
| Overall Thickness | 3.1 mm |
It uses a +5 V supply voltage.
The device can operate from 0 °C up to 50 °C (extended range on request).
It should be stored between -20 °C and 70 °C.
