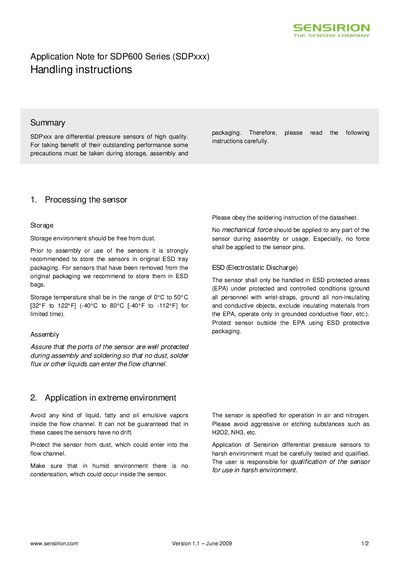

This application note describes the storage, assembly, and packaging precautions for SDPxxx series differential pressure sensors.
The document gives detailed handling instructions for the SDP600 series differential pressure sensors. It covers recommended storage methods, assembly precautions, and special considerations when the sensors are used in harsh or humid environments.
Key points include storing the sensors in original ESD trays or ESD bags, keeping the environment dust‑free, maintaining a storage temperature of 0 °C to 50 °C (‑40 °C to 80 °C for limited time), protecting sensor ports during soldering, and handling the devices only in ESD‑protected areas with grounded personnel and equipment.
| Storage temperature range | 0 °C to 50 °C |
|---|---|
| Supported operating gases | Air and nitrogen |
Store them in the original ESD tray packaging or in ESD bags, keep the environment dust‑free, and maintain a temperature of 0 °C to 50 °C (‑40 °C to 80 °C for limited time).
Protect the sensor ports from dust, solder flux, and liquids, avoid any mechanical force on the pins, and handle the sensor only in an ESD‑protected area with grounded personnel and equipment.
