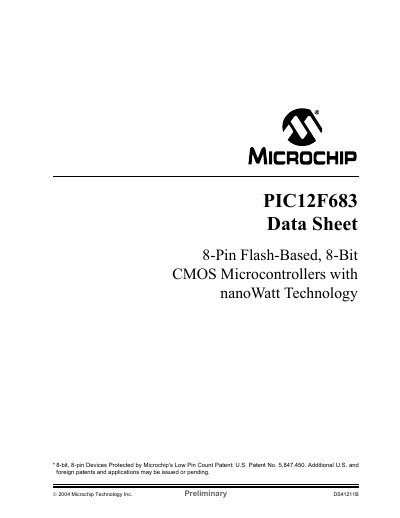

This data sheet introduces the features and characteristics of the PIC12F683 data sheet
The PIC12F683 microcontroller provides a high‑performance RISC CPU with only 35 instructions, a 8‑level deep hardware stack, and a wide operating voltage range of 2.0 V to 5.5 V. It is available in 8‑pin PDIP, SOIC and DFN‑S packages and targets industrial and extended temperature applications.
Key features include a precision internal oscillator (8 MHz‑31 kHz selectable), ultra‑low standby current, 10‑bit A/D converter with four channels, multiple timer modules, capture/compare/PWM capabilities, and programmable code protection. The device also offers high‑endurance flash (100 k write cycles) and EEPROM (1 M write cycles) with data retention over 40 years.
| Operating speed | 20 MHz oscillator/clock input |
|---|---|
| Instruction cycle | 200 ns |
| Standby current | 1 nA @ 2.0 V (typical) |
| Flash write endurance | 100 k write cycles |
| EEPROM write endurance | 1 M write cycles |
| Voltage range | 2.0 V‑5.5 V |
| Temperature range | -40 °C to +125 °C (industrial & extended) |
The device operates from 2.0 V to 5.5 V.
Standby current is typically 1 nA at 2.0 V.
The flash memory can be written up to 100,000 times.
The microcontroller can run at up to 20 MHz.
